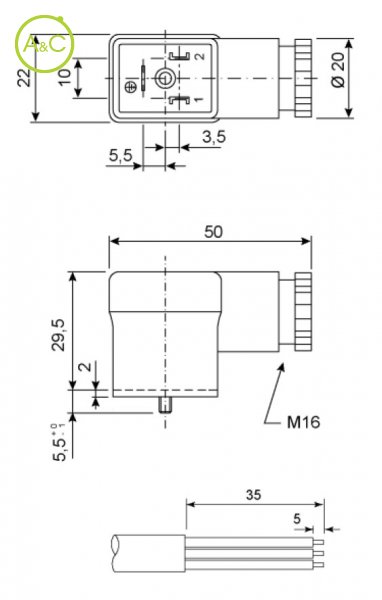

Style B rectangular connector

  • Red Led
Télécharger la fiche produit

Housing Colour

  • Transparent
Article Number VF63 19A3R 3 0 S000 VF63 19A8R 3 0 S000
Protection Degree IP65 IP65
Upper Temperature +70 °C +70 °C
Lower Temperature -40 °C -40 °C
Contact Type Spring contact Spring contact
Housing Material PA66 30%GF PA66 30%GF
Circuits Red Led Red Led
Housing Oil Resistance Good Good
Contact Material Nickel plated CuZn Nickel plated CuZn
Max. Wire Section 1,5 mm² 1,5 mm²
Other Characteristics M3 central screw material: zinc plated iron M3 central screw material: zinc plated iron
Voltage Vdc 10 to 50 70 to 250
Voltage Vac 10 to 50 70 to 250
Max. Currrent 10 A @40°C 10 A @40°C
Les propriétés diffèrent selon les variantes et sous-variantes
