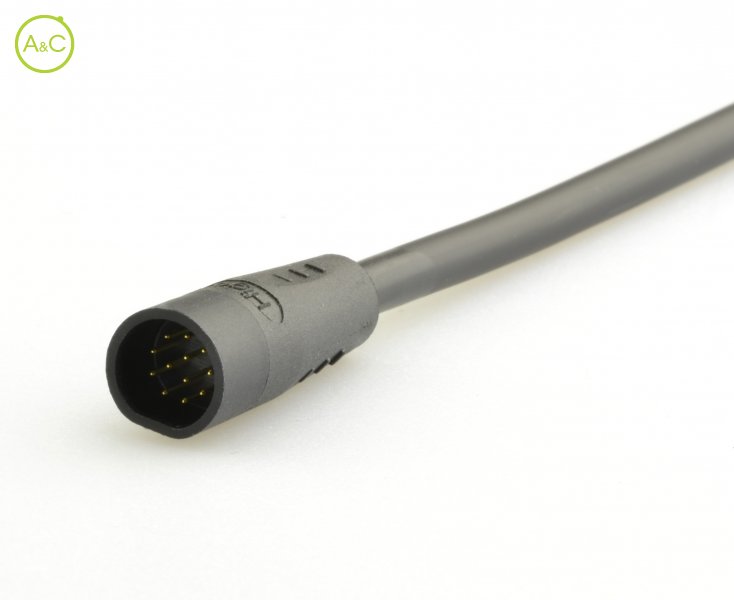

Main male plug connector

Number Of Poles

  • 12
Article Number Z1211AG P 00 DW 1000
Color Black

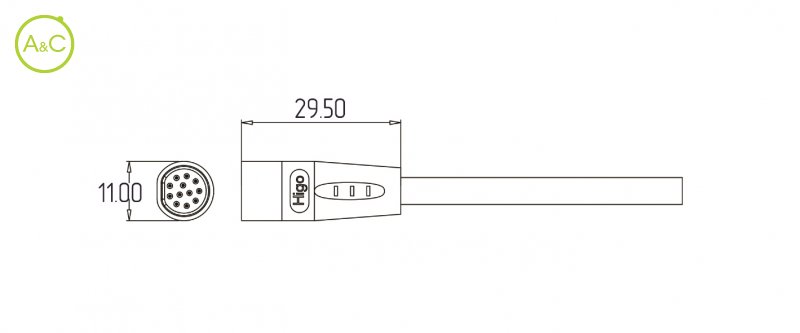

Connector Diameter 11 mm
Wire Section 12 x 0,14 mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Copper Alloy
Cable Diameter 5 mm
Insulation Wire PVC
Remark * Other cable length/type on request
Rated Current 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 53 mm
Material Jacket PVC
Les propriétés diffèrent selon les variantes et sous-variantes
