Connector Normal Type

  • FLZ CONNECTOR
Download product sheet

Number Of Poles

  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 30
  • 33
Article Number 06FLZ-SM2-TB
Number Of Contacts 6
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 0.5mm Pitch ZIF Connector For FPC
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.50 mm
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Characteristics differ between variants of a connector

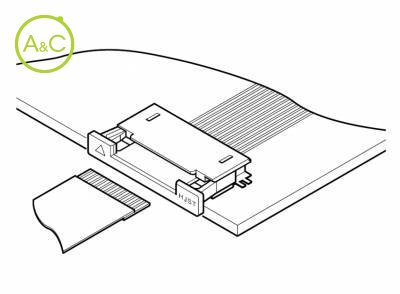

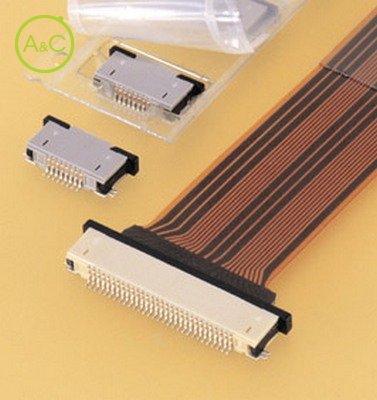

This extremely small 0.5mm (.020") pitch connector with a height of only 2.0mm (.079") above the PCB surface allows interconnection in extremely small spaces and is an example of JST's leading edge technology. Zero insertion force mechanism A ZIF mechanism increases wear resistance and extends the connectors mating life. Heat resistance design suitable for surface mountng This housing is made of heat resistance plastic to allow reflow soldering. In-line surface mount tails Has an in-line surface mount tail for easy inspection. Two types of connectors The connector is available in either the normal or reverse configurations. The FFC/FPC is positioned with it's mating surfaces facing upward for the normal configured connector, while the reverse configuration requires that the FFC/FPC be positioned with it's mating surfaces facing down. The engineer has greater freedom in designing his circuitry. Embossed tape for automatic mounting The FLZ connector can be packaged in embossed tape for automatic mounting. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
