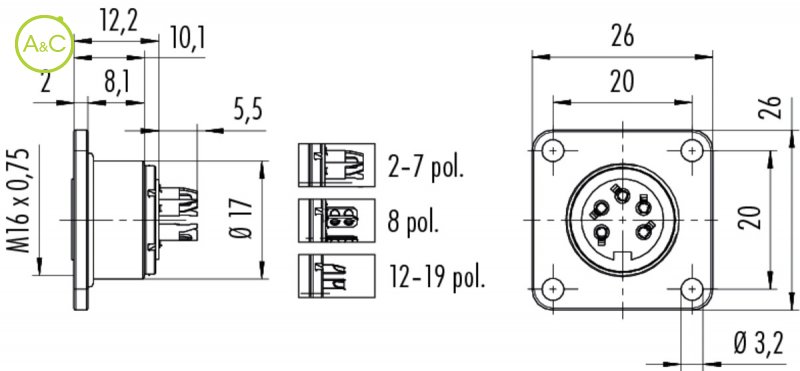

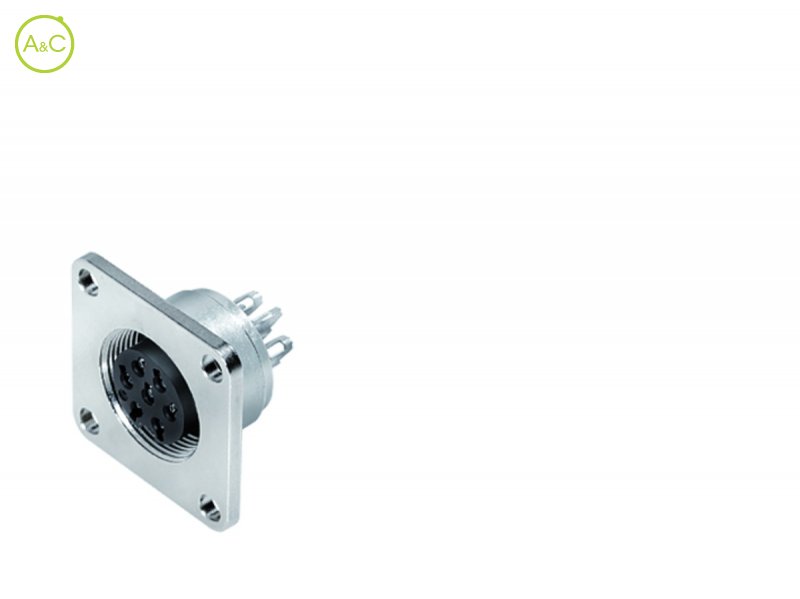

Female panel mount connector

  • Rectangular flange
  • Solder

Number Of Poles

  • 2
  • 3 DIN
  • 4
  • 5
  • 6 DIN
  • 7
  • 8 DIN
  • 12
  • 14
  • 16
  • 19
Article Number 09 0104 300 02
Connector Diameter 17 mm
Number Of Contacts 2 contacts
Connector Locking System Screw (M16)
Termination Solder
Wire Section 0.75 mm²
Protection Degree IP67
Mating Cycles >500 times
Upper Temperature +95 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 1500 V
Pollution Degree 1
Overvoltage Categorie I
Material Group III
Rated Current (40°) 7 A
Max. Contact Resistance 5 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PBT (UL 94 V-0)
Product sheet Download product sheet
Characteristics differ between variants of a connector
