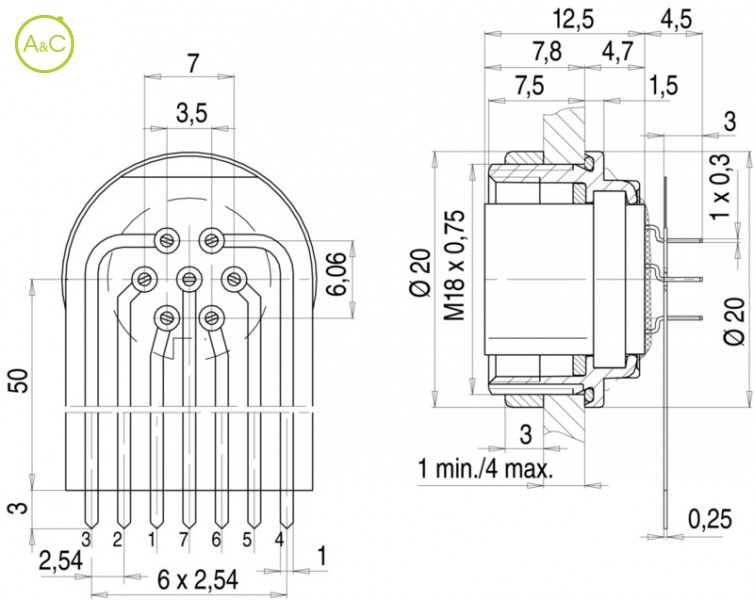

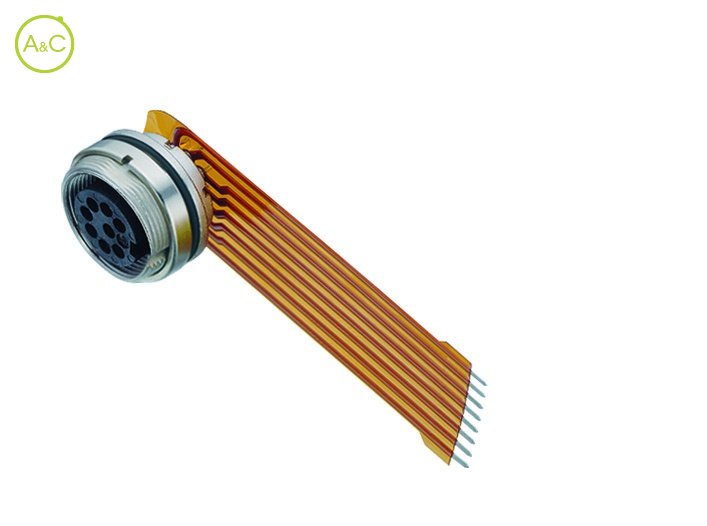

Female panel mount connector

  • With flexible PCB, front fastened

Number Of Poles

  • 7
  • 8 DIN
Article Number 09 0128 65 07
Connector Diameter 20 mm
Number Of Contacts 7 contacts
Connector Locking System Screw (M16)
Termination Dip solder
Protection Degree IP67
Mating Cycles >500 times
Upper Temperature +95 °C
Lower Temperature -40 °C
Rated Voltage 125 (32)
Rated Impuls Voltage 800 V
Pollution Degree 1 (2)*
Overvoltage Categorie I (II)*
Material Group III
Rated Current (40°) 5 A
Max. Contact Resistance 5 mΩ
Material Of Contact CuSn (Bronze)
Plating Ag (Silver)
Material Of Insert PBT (UL 94 V-0)
Material Of Housing Zinc diecasting nickel plated
Remark** *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Product sheet Download product sheet
Characteristics differ between variants of a connector
