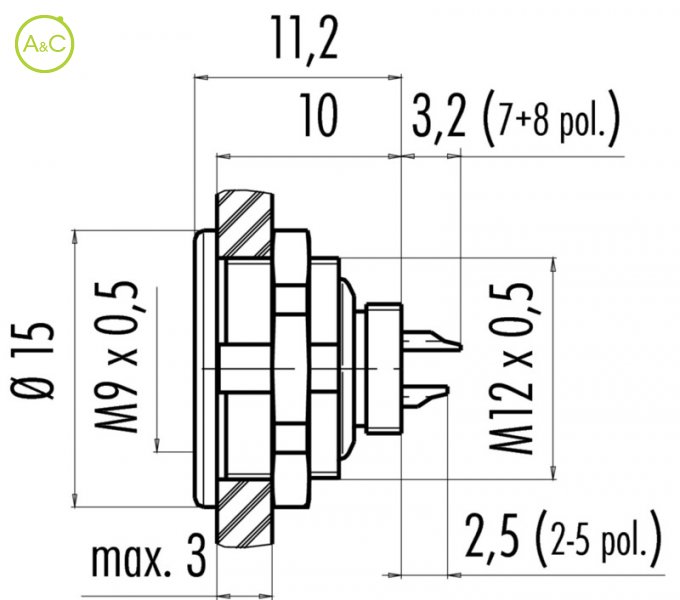

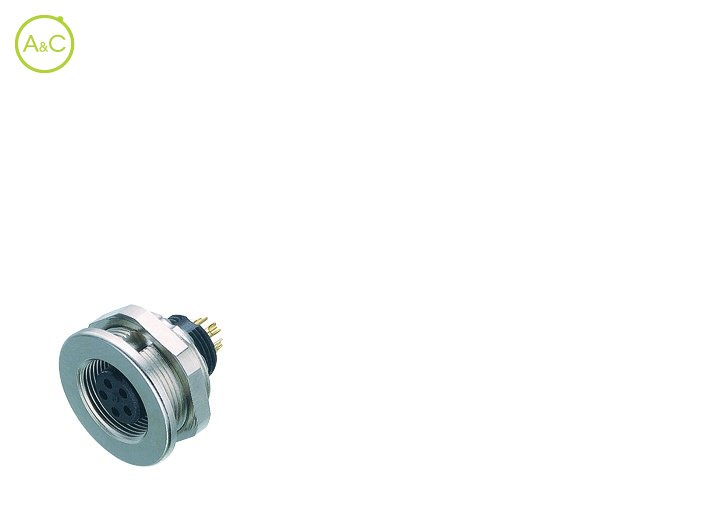

Female panel mount connector

  • Solder

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 7
  • 8
Article Number 09 0404 00 02
Connector Diameter 15 mm
Number Of Contacts 2 contacts
Connector Locking System Screw (M9)
Termination Solder
Wire Section 0.25 mm²
Protection Degree IP67
Mating Cycles >500 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 125
Rated Impuls Voltage 1500 V
Pollution Degree 1
Overvoltage Categorie II
Material Group III
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA (UL 94 V-0)
Material Of Housing CuZn (Brass nickel plated)
Product sheet Download product sheet
Characteristics differ between variants of a connector
