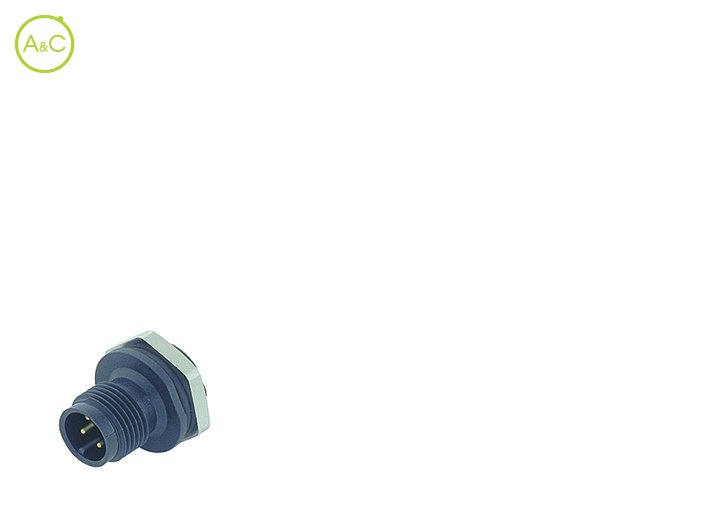

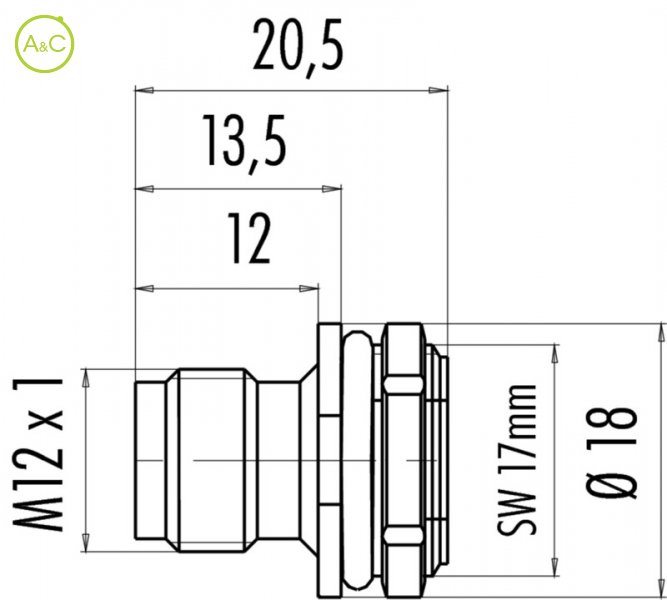

Male panel mount connector

  • Fixing thread

Number Of Poles

  • 4
  • 5
Article Number 09 0431 160 04 09 0431 390 04
Connector Diameter 18 mm 18 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-B) Screw (M12-B)
Termination Solder Solder
Wire Section 0.25 mm² 0.25 mm²
Protection Degree IP67 IP67
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group III III
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Product sheet Download product sheet Download product sheet
Characteristics differ between variants of a connector
