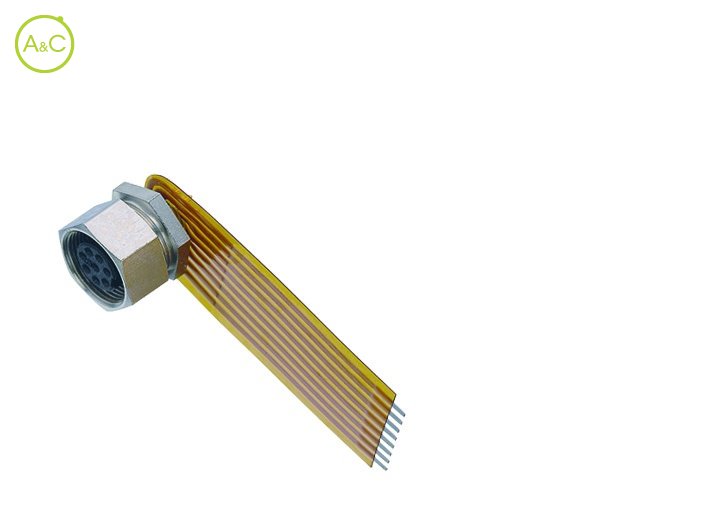

Female panel mount connector
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 7
- 8
| Article Number | 09 0478 65 07 |
| Connector Diameter | 11.5 mm |
| Number Of Contacts | 7 contacts |
| Connector Locking System | Screw (M9) |
| Termination | Dip solder |
| Protection Degree | IP40 |
| Mating Cycles | >500 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 125 |
| Rated Impuls Voltage | 1500 V |
| Pollution Degree | 1 |
| Overvoltage Categorie | II |
| Material Group | III |
| Rated Current (40°) | 1 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Material Of Insert | PA (UL 94 V-0) |
| Material Of Housing | CuZn (Brass nickel plated) |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
