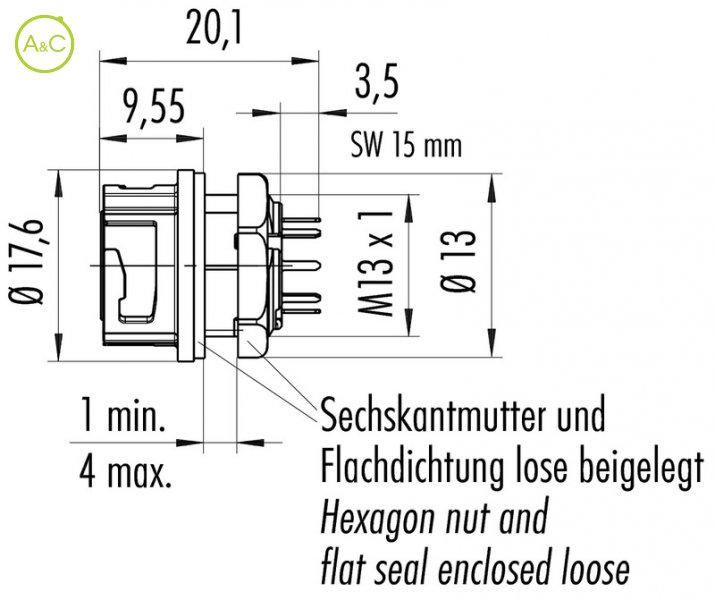

Female panel mount connector

  • Dip solder

Number Of Poles

  • 8
Article Number 09 0774 090 08
Connector Diameter 17.6 mm
Number Of Contacts 8 contacts
Connector Locking System Bayonet
Termination Dip solder
Wire Section 0.25 mm²
Protection Degree IP67 (also when not connected)
Mating Cycles >5000 times
Upper Temperature +85 °C
Lower Temperature -25 °C
Rated Voltage 175
Rated Impuls Voltage 1750 V
Pollution Degree 2
Overvoltage Categorie II
Material Group II
Rated Current (40°) 2 A
Max. Contact Resistance 15 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA (UL 94 V-0)
Material Of Housing PA (UL 94 H-B)
Product sheet Download product sheet
Characteristics differ between variants of a connector
