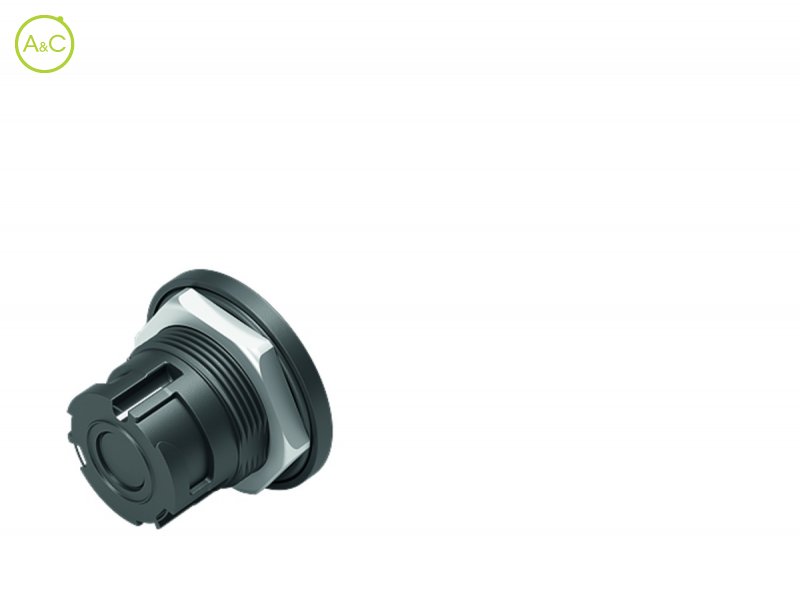

Female panel mount connector

  • Dip solder, front fastened

Number Of Poles

  • 8
Article Number 09 0774 190 08
Connector Diameter 23 mm
Number Of Contacts 8 contacts
Connector Locking System Bayonet
Termination Dip solder
Protection Degree IP 67 (also when not connected
Mating Cycles >5000 times
Upper Temperature +85 °C
Lower Temperature -25 °C
Rated Voltage 175
Rated Impuls Voltage 1750 V
Pollution Degree 2
Overvoltage Categorie II
Material Group II
Rated Current (40°) 2 A
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing PA
Product sheet Download product sheet
Characteristics differ between variants of a connector
