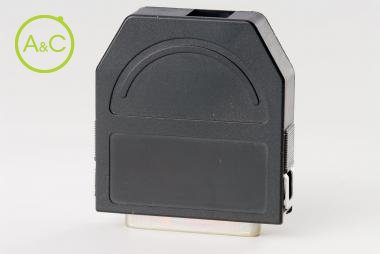

Quick lock plastic hood
Do you have any questions about this product?
More info on this brand:
Provertha
Provertha
Number Of Poles
- 9
- 15
- 25
- 37
- 50
| Article Number | 103 09 0BT 001 | 103 09 0M 001 |
| Number Of Contacts | 9 | 9 |
| Upper Temperature | +90 °C | +90 °C |
| Lower Temperature | -20 °C | -20 °C |
| Plating | Nickel plated copper | Nickel plated copper |
| Material | ABS UL 94-V0 | ABS UL 94-V0 |
| Extra Information | New, innovative locking system Quick, single hand action, secure latching, highest retention force Quicker assembly as Screw-and Slide locking system approved for automobiles 2-3 cable inputs | New, innovative locking system Quick, single hand action, secure latching, highest retention force Quicker assembly as Screw-and Slide locking system approved for automobiles 2-3 cable inputs |
| Hood Version | black | Metallized |
| Locking Style | Push-Pull Quick-Lock | Push-Pull Quick-Lock |
| Cable Exit | Straight Angled: - 9P: 1x 15° - 15P: 1x30° - 25-50P: 2x30° | Straight Angled: - 9P: 1x 15° - 15P: 1x30° - 25-50P: 2x30° |
| Cable Fixing | Clamp intern (al) Clamp extern (al) Crimp flange | Clamp intern (al) Clamp extern (al) Crimp flange |
| Cable Diameter Internal Cable Clamp | 4-10 | 4-10 |
| Cable Diameter External Cable Clamp | 4-14 | 4-14 |
| Cable Diameter Crimping Flange | 2,7-8,7 | 2,7-8,7 |
| Material/surface Cover Screws | ST Zinc plated | ST Zinc plated |
Characteristics differ between variants of a connector
