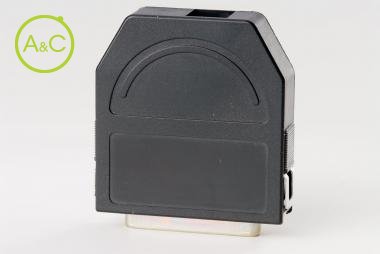

Quick lock plastic hood

  • Short version as set
Download product sheet

Number Of Poles

  • 9
  • 15
  • 25
  • 37
  • 50
Article Number 104 09 0BT 001 104 09 0M 001
Number Of Contacts 9 9
Upper Temperature +90 °C +90 °C
Lower Temperature -20 °C -20 °C
Plating Nickel plated copper Nickel plated copper
Material ABS UL 94-V0 ABS UL 94-V0
Extra Information New, innovative locking system Quick, single hand action, secure latching, highest retention force Quicker assembly as Screw-and Slide locking system approved for automobiles 2-3 cable inputs New, innovative locking system Quick, single hand action, secure latching, highest retention force Quicker assembly as Screw-and Slide locking system approved for automobiles 2-3 cable inputs
Hood Version black Metallized
Locking Style Push-Pull Quick-Lock Push-Pull Quick-Lock
Cable Exit Straight Angled: - 9P: 1x 15° - 15P: 1x30° - 25-50P: 2x30° Straight Angled: - 9P: 1x 15° - 15P: 1x30° - 25-50P: 2x30°
Cable Fixing Clamp intern (al) Clamp extern (al) Crimp flange Clamp intern (al) Clamp extern (al) Crimp flange
Cable Diameter Internal Cable Clamp 4-10 4-10
Cable Diameter External Cable Clamp 4-14 4-14
Cable Diameter Crimping Flange 2,7-8,7 2,7-8,7
Material/surface Cover Screws ST Zinc plated ST Zinc plated
Characteristics differ between variants of a connector
