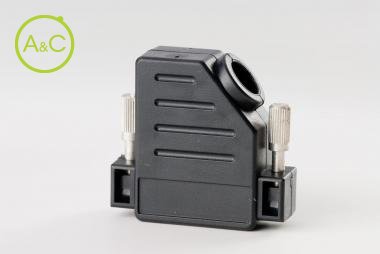

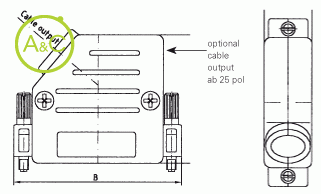

Plastic hoods black and metallized with screw locking and side cable output
Do you have any questions about this product?
More info on this brand:
Provertha
Provertha
Number Of Poles
- 9
- 15
- 25
- 37
- 50
| Article Number | 47 09 0B 25 T 001 | 47 09 0M 25 T 001 |
| Number Of Contacts | 9 | 9 |
| Upper Temperature | +90 °C | +90 °C |
| Lower Temperature | -20 °C | -20 °C |
| Plating | Nickel plated copper | Nickel plated copper |
| Thread | UNC 4-40 | UNC 4-40 |
| Remark* | If you need coloured hoods please replace the B in the article number by R,Y,H,G or F | If you need coloured hoods please replace the B in the article number by R,Y,H,G or F |
| Remark** | Multi opening possible | Multi opening possible |
| Material | ABS UL 94-V0 | ABS UL 94-V0 |
| Extra Information | Possibility to insert in 3 TE grid integrated anti-dust cover | Possibility to insert in 3 TE grid integrated anti-dust cover |
| Hood Version | black with 25 mm thumb screw | Metalllized with 25 mm slotted screw |
| Colour* | R= Red Y = Yellow H= Blue G = Grey F= Green | R= Red Y = Yellow H= Blue G = Grey F= Green |
| Locking Style | knurled screw | knurled screw |
| Cable Exit | Angled 1x40° ** | Angled 1x40° ** |
| Cable Fixing | Clamp intern (al) | Clamp intern (al) |
| Cable Diameter Internal Cable Clamp | 4-10 | 4-10 |
| Material/surface Cover Screws | ST Zinc plated | ST Zinc plated |
Characteristics differ between variants of a connector
