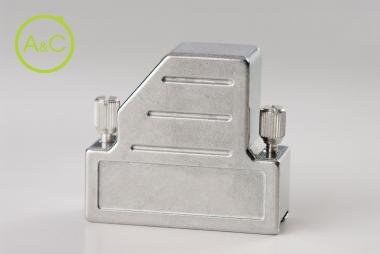

Diecast hoods with side cable output and screw locking

  • Hood set packed in bag
Download product sheet

Number Of Poles

  • 9
  • 15
  • 25
Article Number 47 09 DC 25 001
Number Of Contacts 9
Upper Temperature +90 °C
Lower Temperature -20 °C
Thread UNC 4-40
Remark* Crimping flange needs te be ordered seperately
Material Zn alloy
Extra Information Easy assembling by means of pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjunction with crimp flanged
Locking Style knurled screw
Cable Exit Angled 1x40°
Cable Fixing Crimp flange
Cable Diameter Internal Cable Clamp 4-10
Material/surface Locking Screws Diecast St tin plated
Material/surface Cover Screws ST Zinc plated
