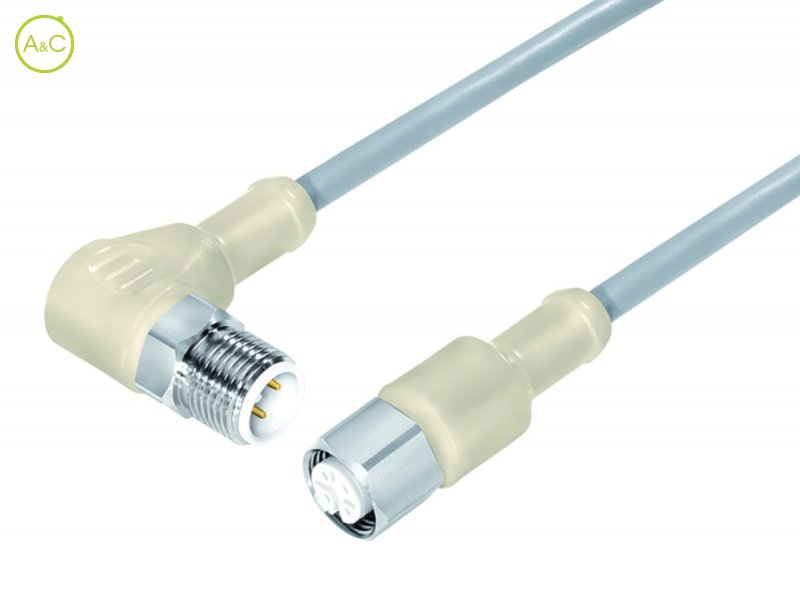

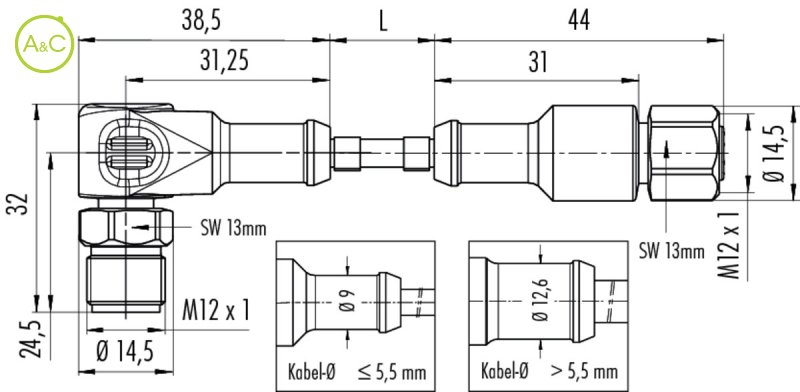

Connecting cable, male angled connector M12x1 & female cable connector M12x1
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 3
- 4
- 5
- 8
- 12
| Article Number | 77 3730 3727 20403 0200 | 77 3730 3727 20403 0500 |
| Color | Grey | Grey |
| Connector Diameter | 14.5 mm | 14.5 mm |
| Number Of Contacts | 3 contacts | 3 contacts |
| Connector Locking System | Screw (M12-A) | Screw (M12-A) |
| Termination | Crimp, overmoulded on cable | Crimp, overmoulded on cable |
| Wire Section | 0.34 mm² | 0.34 mm² |
| Protection Degree | IP69K | IP69K |
| Mating Cycles | >100 times | >100 times |
| Upper Temperature | +105 °C | +105 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 250 | 250 |
| Rated Impuls Voltage | 2500 V | 2500 V |
| Pollution Degree | 3 | 3 |
| Overvoltage Categorie | II | II |
| Material Group | II | II |
| Rated Current (40°) | 4 A | 4 A |
| Max. Contact Resistance | 3 mΩ | 3 mΩ |
| Material Of Contact | Cuzn (Brass), Cusn (Bronze) | Cuzn (Brass), Cusn (Bronze) |
| Plating | Au (Gold) | Au (Gold) |
| Material Of Insert | PP | PP |
| Material Of Housing | PP | PP |
| Insulation Single Lead | PVC | PVC |
| Single Lead Structure | 32x0,1 | 32x0,1 |
| Cable Sheath Ø | 4.5 mm | 4.5 mm |
| Conductor Resistance | 57 Ω/km | 57 Ω/km |
| Bending Radius Cable Fixed | Min. 5xD | Min. 5xD |
| Bending Radius Cable Movable | min. 10xD | min. 10xD |
| Wire Gauge | 22 AWG | 22 AWG |
| Material Housing Of Cable | PVC | PVC |
| Product sheet | Download product sheet | Download product sheet |
Characteristics differ between variants of a connector
