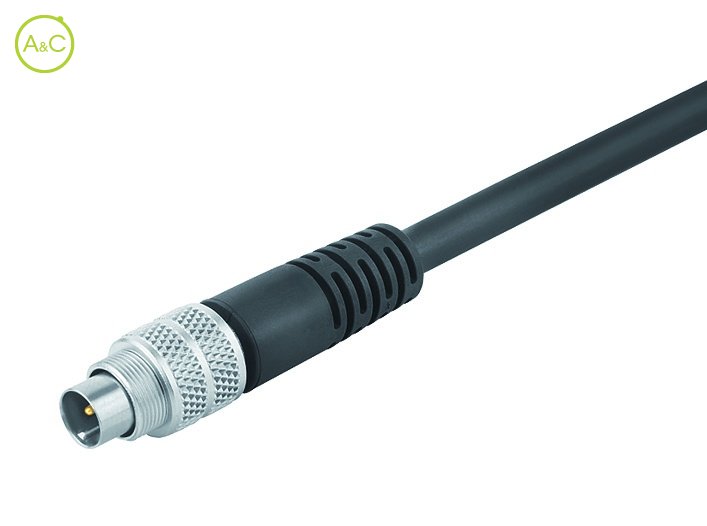

Male cable connector

  • Moulded, shielded

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 7
  • 8
Article Number 79 1401 12 02 79 1401 15 02

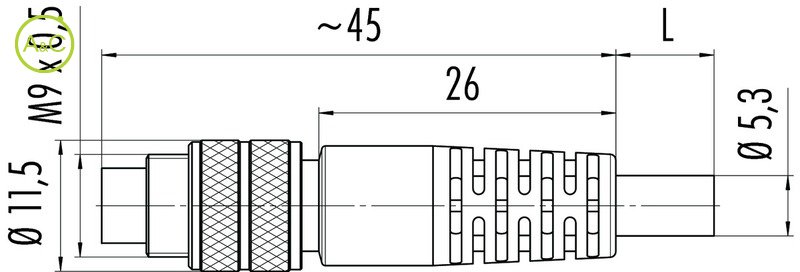

Connector Diameter 11.5 mm 11.5 mm
Number Of Contacts 2 contacts 2 contacts
Connector Locking System Screw (M9) Screw (M9)
Termination Moulded Moulded
Wire Section 0.25 mm² 0.25 mm²
Protection Degree IP67 IP67
Mating Cycles >500 times >500 times
Upper Temperature +70 °C +70 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 125 125
Rated Impuls Voltage 1500 V 1500 V
Pollution Degree 1 1
Overvoltage Categorie II II
Material Group III III
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PBT (UL 94 V-0) PBT (UL 94 V-0)
Material Of Housing PUR PUR
Cable Diameter 5,3 mm 5,3 mm
Product sheet Download product sheet Download product sheet
Characteristics differ between variants of a connector
