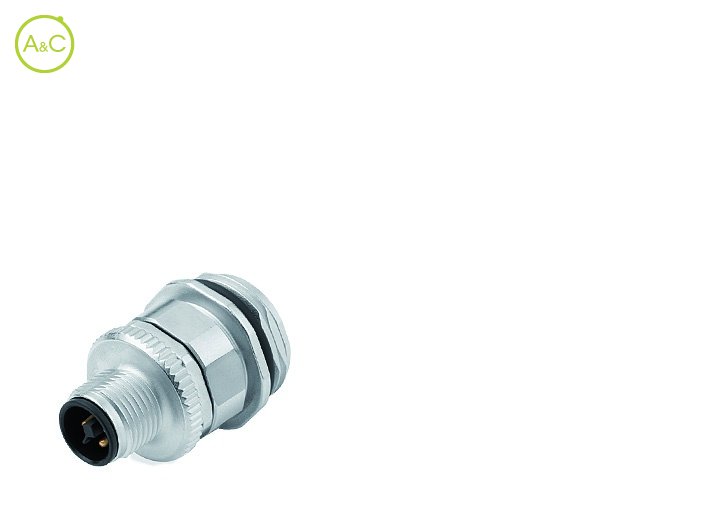

Male panel mount connector

  • Power, T-coding, M20 x 1,5

Number Of Poles

  • 4
Article Number 99 0633 500 04

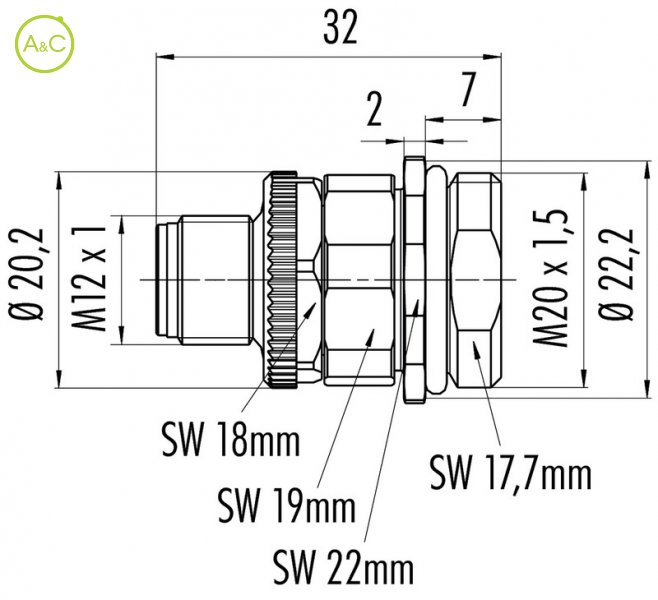

Connector Diameter 20.2 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-T)
Termination Screw clamp
Wire Section 1.5 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 60
Rated Impuls Voltage 1500 V
Pollution Degree 3
Overvoltage Categorie III
Material Group III
Rated Current (40°) 12 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing Zinc diecasting nickel plated
Fixing Thread M20 x 1,5
Product sheet Download product sheet
Characteristics differ between variants of a connector
