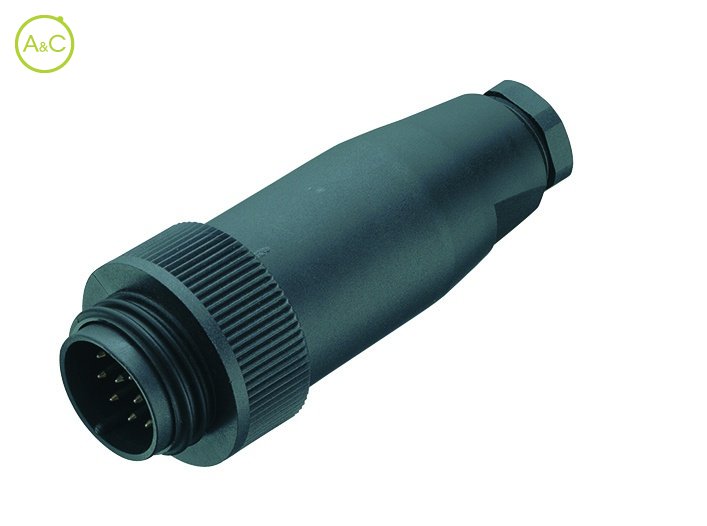

Male cable connector
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 4+PE
- 12+PE
- 24
| Article Number | 99 0709 00 05 | 99 0709 02 05 | 99 0709 03 05 |

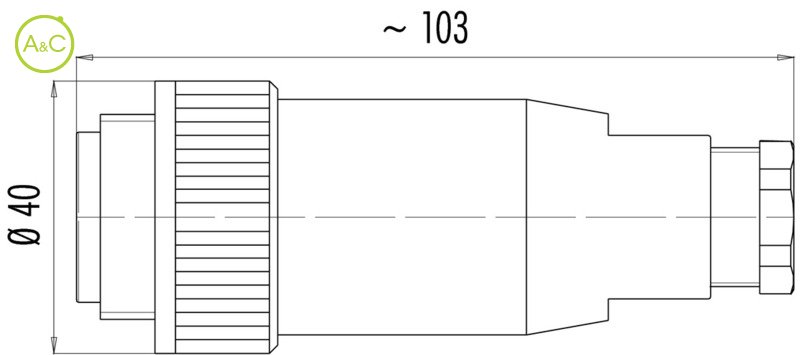

| Connector Diameter | 40 mm | 40 mm | 40 mm |
| Number Of Contacts | 4+PE contacts | 4+PE contacts | 4+PE contacts |
| Connector Locking System | Screw (RD30) | Screw (RD30) | Screw (RD30) |
| Termination | Screw | Screw | Screw |
| Wire Section | 2.5 mm² | 2.5 mm² | 2.5 mm² |
| Protection Degree | IP65 | IP65 | IP65 |
| Mating Cycles | >500 times | >500 times | >500 times |
| Upper Temperature | +100 °C | +100 °C | +100 °C |
| Lower Temperature | -40 °C | -40 °C | -40 °C |
| Rated Voltage | 400 | 400 | 400 |
| Rated Impuls Voltage | 6000 V | 6000 V | 6000 V |
| Pollution Degree | 3 | 3 | 3 |
| Overvoltage Categorie | III | III | III |
| Material Group | III | III | III |
| Rated Current (40°) | 20 A | 20 A | 20 A |
| Max. Contact Resistance | 5 mΩ | 5 mΩ | 5 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) | CuZn (Brass) |
| Plating | Ag (Silver) | Ag (Silver) | Ag (Silver) |
| Material Of Insert | PA (UL 94 HB) | PA (UL 94 HB) | PA (UL 94 HB) |
| Material Of Housing | PA (UL 94 V-0) | PA (UL 94 V-0) | PA (UL 94 V-0) |
| Cable Outlet | 10-12 mm | 12-14 mm | 14-18 mm |
| Product sheet | Download product sheet | Download product sheet | Download product sheet |
Characteristics differ between variants of a connector
