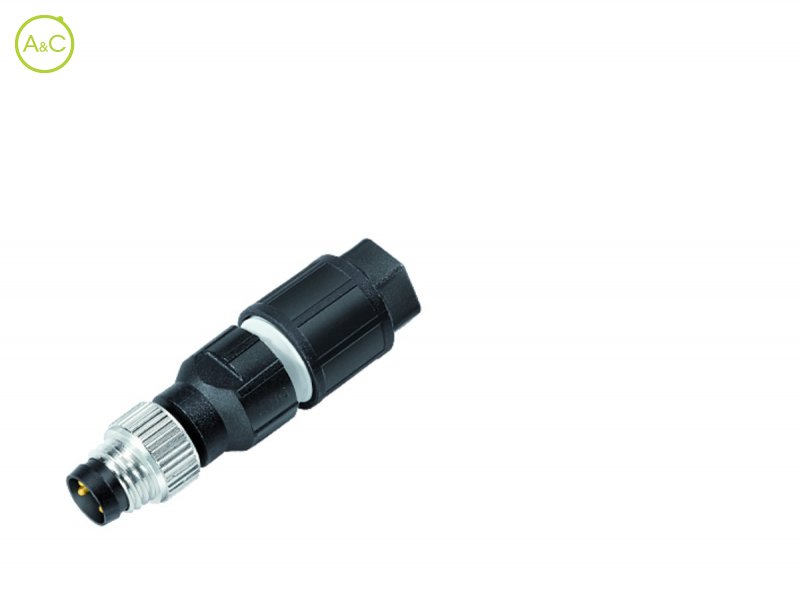

Male cable connector
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 3
- 4
| Article Number | 99 3379 500 03 | 99 3379 550 03 |

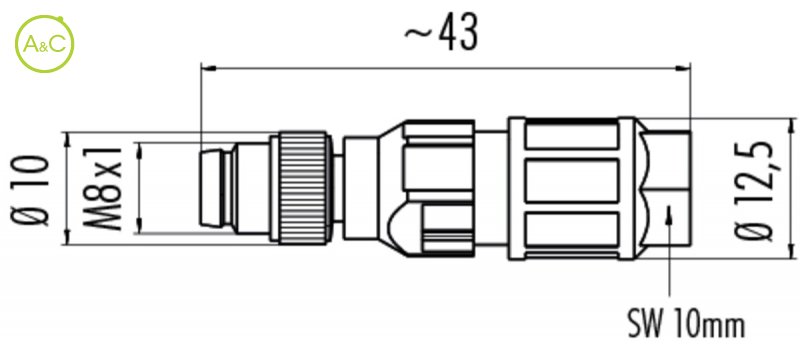

| Connector Diameter | 10 mm | 10 mm |
| Number Of Contacts | 3 contacts | 3 contacts |
| Connector Locking System | Screw (M8) | Screw (M8) |
| Termination | Cutting clamping | Cutting clamping |
| Wire Section | 0,08-0,25 mm² | 0,25-0,5 mm² |
| Protection Degree | IP67 | IP67 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| Rated Voltage | 60 | 60 |
| Rated Impuls Voltage | 800 V | 800 V |
| Pollution Degree | 3 | 3 |
| Overvoltage Categorie | II | II |
| Material Group | III | III |
| Rated Current (40°) | 4 A | 4 A |
| Max. Contact Resistance | 5 mΩ | 5 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) |
| Plating | Au (Gold) | Au (Gold) |
| Material Of Insert | TPU | TPU |
| Cable Outlet | 2,5-5,2 mm | 2,5-5,2 mm |
| Wire Gauge | 28-24 AWG | 24-20 AWG |
| Product sheet | Download product sheet | Download product sheet |
Characteristics differ between variants of a connector
