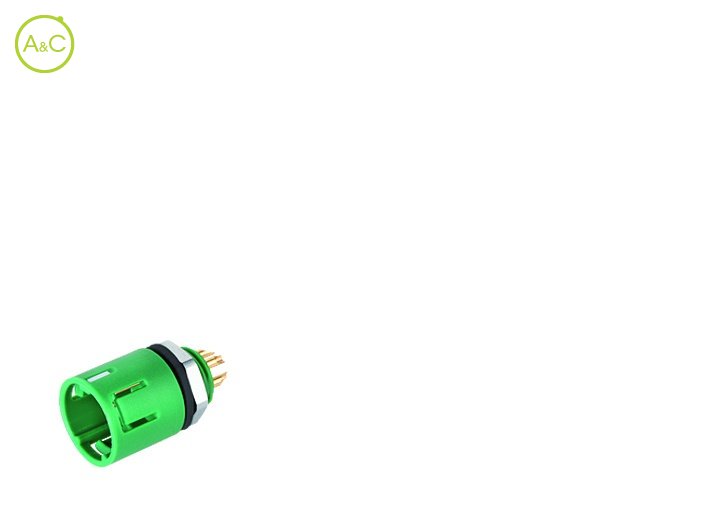

Male panel mount connector

  • Color code green

Number Of Poles

  • 3
  • 4
  • 5
  • 8
Article Number 99 9207 070 03

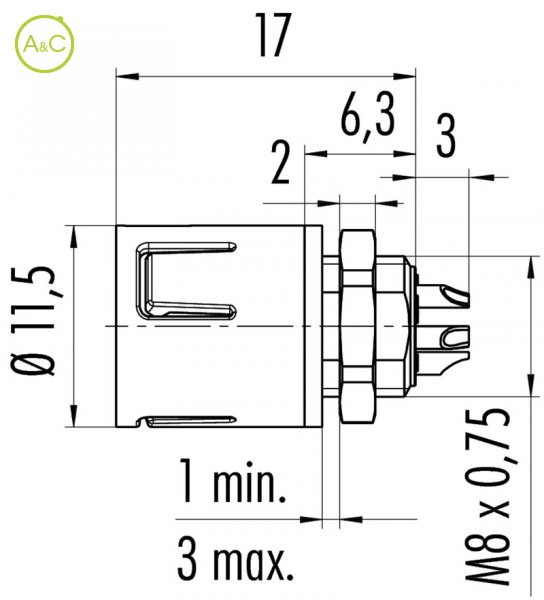

Connector Diameter 11.5 mm
Number Of Contacts 3 contacts
Connector Locking System Snap-in
Termination Solder
Wire Section 0.25 mm²
Protection Degree IP67
Mating Cycles >500 times
Upper Temperature +85 °C
Lower Temperature -25 °C
Rated Voltage 125
Rated Impuls Voltage 1500 V
Pollution Degree 2
Overvoltage Categorie II
Material Group II
Rated Current (40°) 3 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA (UL 94 V-0)
Material Of Housing PA (UL 94 V-0)
Product sheet Download product sheet
Characteristics differ between variants of a connector
