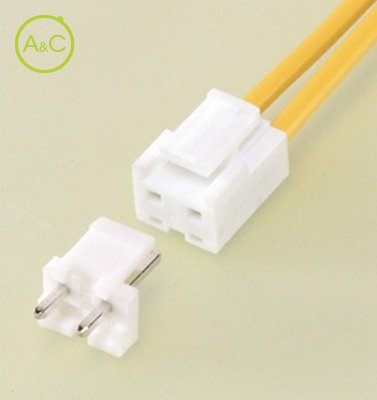

Top Entry Locking Header THT

  • NV CONNECTOR
Download product sheet

Number Of Poles

  • 2
  • 3
  • 4
Article Number B02P-NV
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 5.0mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 5.00 mm
Rated Current (ac/dc) 10 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Remark* Secure locking device
Characteristics differ between variants of a connector

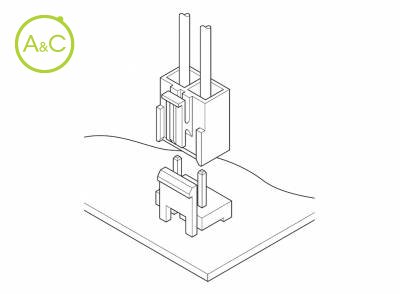

Suitable for a wide range of applications, from low-voltage, low-current signal circuits to power supply circuits requiring large currents. Compact connector (mounting height of 16.5mm) with a large capacity (10A). Side stackable. Connectors can be stacked side by side without causing pitch loss, and thus the number of circuits can easily be changed even after the design is finalized. Side stackable Connectors can be stacked side by side without causing pitch loss, and thus the number of circuits can easily be changed even after the design is finalized. This increases the engineer's freedom in designing printed circuit boards. Box contact This connector has been the box-shaped contact. The reliable NV connector can be used in a wide variety of applications, from low-voltage, low-current signal circuits to power supply circuits having a relatively large capacity. Compact connector with a large capacity Even though this connector has a large current carrying capacity (10A), it is compact, with a mounting height of 16.5mm (.650"). Secure contact and mounting The housing has an arm lock mechanism which prevents the connector from working loose due to vibration. The mechanism also prevents misinsertion (misalignment or reverse insertion). Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R9251676 RoHS Compliant
