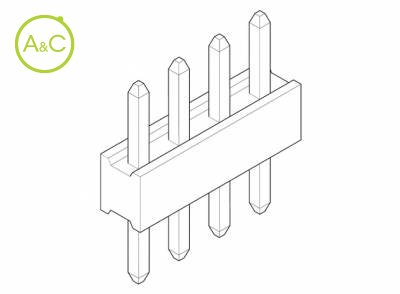

Top Entry Header THT

  • BC HEADER
Download product sheet

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
Article Number B10P-BC-2
Number Of Contacts 10
General Description 2mm Pitch Header
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.00 mm
Pcb Mount Style Through-hole Technology (THT)
Characteristics differ between variants of a connector

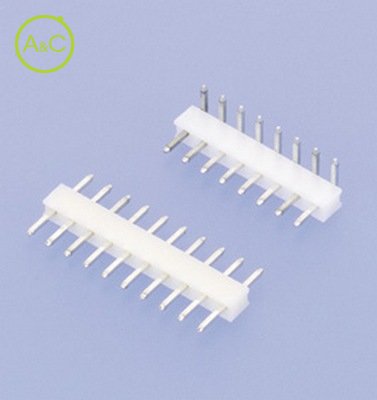

Measuring 2.0mm (.079") in pitch, this compact header is designed for direct board-to-board connection. Available in two types: the top entry type and the side entry type. In addition to the BC header, JST also offers the SB header having 2.5mm (.098") and 2.54mm (.100") pitches. Only the standard specifications are listed. Contact JST for special specifications. Standards UL Recognized E60389 RoHS Compliant
