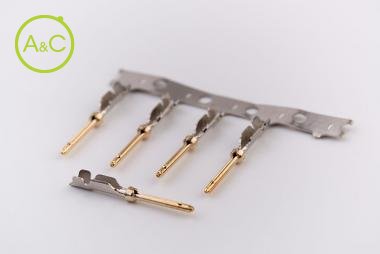

High Density D-Sub Crimp contacts

  • Machined contacts

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

Packaging

  • Individual contacts

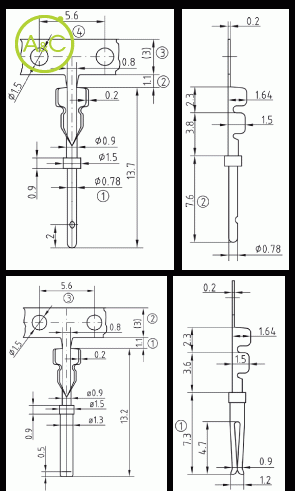

Article Number CH052400G2 CH062400G2
Contact Plating Mating area: Au over Ni Termination area: Sn over Ni Mating area: Au over Ni Termination area: Sn over Ni
Contact Material Cu alloy Cu alloy
Gender Male Female
Awg Range AWG 24-28 AWG 24-28
Awg Size AWG 24-28 AWG 24-28
Current Rating At 20°c VDE: 3,5 A CSA: 2,5 A UL: 3 VDE: 3,5 A CSA: 2,5 A UL: 3
Quality Class Class 2 = 200 mating cycles Class 2 = 200 mating cycles
Cross Section 0,22 - 0,08 0,22 - 0,08
Characteristics differ between variants of a connector
