Hoods with 4 pegs

Side entry
Aluminium, PG entry

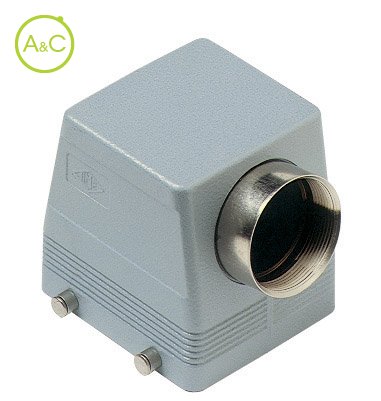

CHO 32.29

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Entry

1xPG29
1xPG36
1xPG42

Article Number	CHO 32.29
Protection Degree	IP66
Material Housing	Aluminium
Height	94 mm
Length	93.5
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 80P+PE; CDD 144P+PE; CDS 54P+PE; CSH 32P+PE; CNE-CSE 32P+PE; CCE 32P+PE; CSS 32P+PE; CQE 64P+PE; CMCE 12+4(aux)PE; CME 12+4(aux)P+PE; CMSH 12+4(aux)P+PE; CP 12P+PE; MIXO 4+4 modules; CDHS 54 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	82.5 mm

Article Number	CHO 32
Protection Degree	IP66
Material Housing	Aluminium
Height	94 mm
Length	93.5
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 80P+PE; CDD 144P+PE; CDS 54P+PE; CSH 32P+PE; CNE-CSE 32P+PE; CCE 32P+PE; CSS 32P+PE; CQE 64P+PE; CMCE 12+4(aux)PE; CME 12+4(aux)P+PE; CMSH 12+4(aux)P+PE; CP 12P+PE; MIXO 4+4 modules; CDHS 54 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	82.5 mm

Article Number	CHO 32.42
Protection Degree	IP66
Material Housing	Aluminium
Height	94 mm
Length	93.5
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 80P+PE; CDD 144P+PE; CDS 54P+PE; CSH 32P+PE; CNE-CSE 32P+PE; CCE 32P+PE; CSS 32P+PE; CQE 64P+PE; CMCE 12+4(aux)PE; CME 12+4(aux)P+PE; CMSH 12+4(aux)P+PE; CP 12P+PE; MIXO 4+4 modules; CDHS 54 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	82.5 mm

Characteristics differ between variants of a connector
