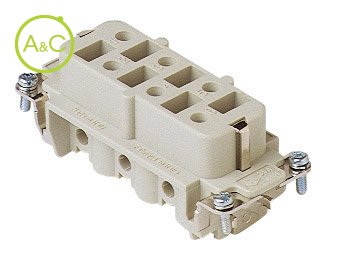

Inserts, 6P + PE, Screw terminal connections

  • Female inserts with female contacts
  • Silver plated contacts, Indirect with plate

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet
  • General
Article Number CPF 06
Pollution Degree 3
Number Of Poles 6
Connection Type Screw connection
Contact Type Female
Extra Information With protective conductor
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 125 °C
Min. Cross Section Without End Sleeve 1.5 mm²
Max. Cross Section Without End Sleeve 6 mm²
Required Housing C-type size 77.27
C7 size 77.27
Simplex size 77.27
V-type size 77.27
BIG size 77.27
T-type size 77.27
T-type/W size 77.27
T-type/H size 77.27
T-type/C size 77.27
W-type size 77.27
EMC size 77.27
Central Lever size 77.27
High protection IP68
LS-type size 77.27
COB size 77.27
Diameter Male Contact 3.5 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Material Contact Brass
Plating Of Contact Silver
Max. Rated Current 35 A
Nominal Rated Voltage 690 V
Over Voltage Category III
Rated Surge Voltage 6 kV
Characteristics differ between variants of a connector
Accessoires
CR VPTG
Screws for second earth terminal
