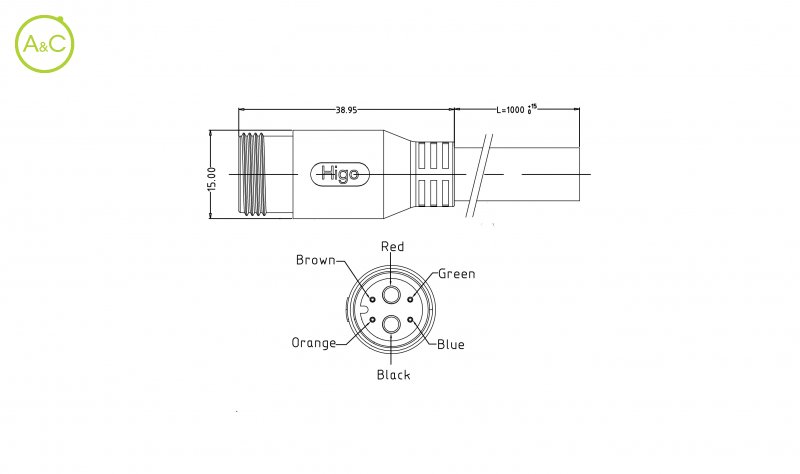

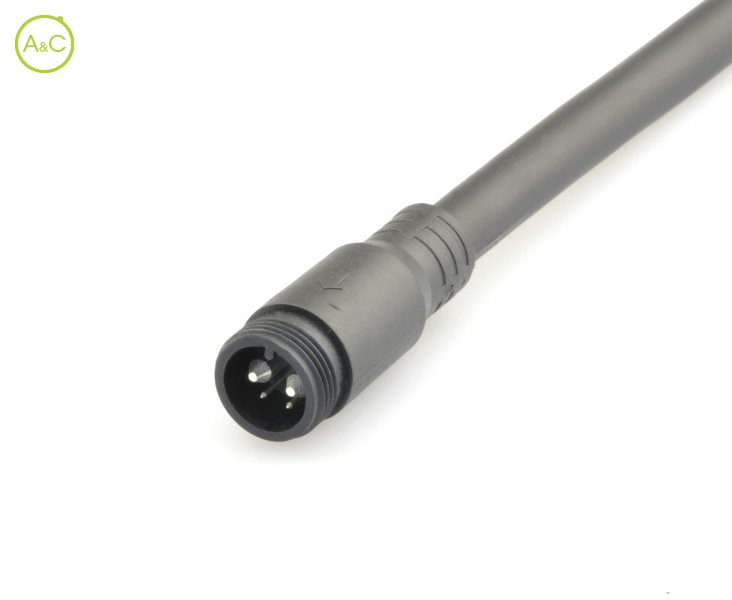

Male cable connector

Download product sheet Download step file

Number Of Poles

  • 6(2+4)
Article Number L615AG P 00 DC 1000
Color Black
Connector Diameter 15 mm
Wire Section 2 x 4,0 + 4 x 0,2 mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Brass
Insulation Wire PTFE
Remark Other cable length/type on request
Rated Current 40 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 77 mm
Material Jacket PVC
Characteristics differ between variants of a connector
