Mixed layout contacts solder pot

High power contacts

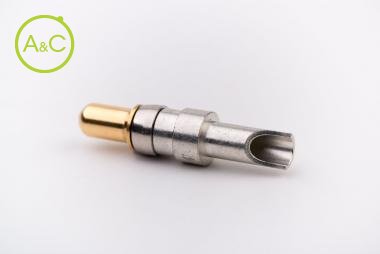

P5110G2

P5110G2

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Current Rating

10
20
30
40

Article Number	P5110G2	S6110G2
Contact Plating	Au over Ni	Au over Ni
Contact Material	CU-alloy	CU-alloy
Remark*	G2: preferred version G1 & G3 on request	G2: preferred version G1 & G3 on request
Gender	Male	Female
Test Voltage U Eff	1000	1000
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles

Article Number	P5120G2	S6120G2
Contact Plating	Au over Ni	Au over Ni
Contact Material	CU-alloy	CU-alloy
Remark*	G2: preferred version G1 & G3 on request	G2: preferred version G1 & G3 on request
Gender	Male	female
Test Voltage U Eff	1000	1000
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles

Article Number	P5130G2	S6130G2
Contact Plating	Au over Ni	Au over Ni
Contact Material	CU-alloy	CU-alloy
Remark*	G2: preferred version G1 & G3 on request	G2: preferred version G1 & G3 on request
Gender	Male	Female
Test Voltage U Eff	1000	1000
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles

Article Number	P5140G2	S6140G2
Contact Plating	Au over Ni	Au over Ni
Contact Material	CU-alloy	CU-alloy
Remark*	G2: preferred version G1 & G3 on request	G2: preferred version G1 & G3 on request
Gender	Male	Female
Test Voltage U Eff	1000	1000
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles

Characteristics differ between variants of a connector
