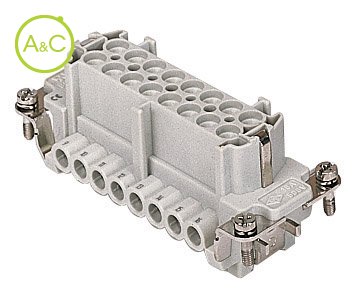

Inserts, 32P + PE, Screw terminal connection
Do you have any questions about this product?
More info on this brand:
Ilme
Ilme
- General
| Article Number | CNEF 16 TX |
| Pollution Degree | 3 |
| Number Of Poles | 32 |
| Connection Type | Screw connection |
| Contact Type | Female |
| Extra Information | With protective conductor |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 125 °C |
| Pin Numbers | 1-16 |
| Min. Cross Section With End Sleeve | 0.25 mm² |
| Max. Cross Section With End Sleeve | 2.5 mm² |
| Required Housing |
C-type size 77.62 W-type size 77.62 |
| Diameter Male Contact | 2.5 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Material Contact | Brass |
| Plating Of Contact | Silver |
| Max. Rated Current | 16 A |
| Nominal Rated Voltage | 500 V |
| Over Voltage Category | III |
| Rated Surge Voltage | 6 kV |
Characteristics differ between variants of a connector
