Pin Contact

  • VL CONNECTOR
Download product sheet

Applicable Wire

  • AWG 12
  • AWG 20 to 14
  • AWG 22 to 16
Article Number SVM-42T-P2.0
Upper Temperature +90 °C
Lower Temperature -25 °C
General Description 6.2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Applicable Wire Size 0.3 to 1.25 (AWG #22 to #16) mm²
Connection Type Wire to Wire Connectors
Pitch / Style 6.20 mm
Rated Current (ac/dc) 20 A
Rated Voltage (ac/dc) 600 V
Remark* Secure locking device
Characteristics differ between variants of a connector

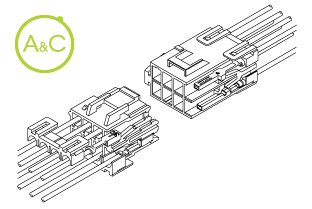

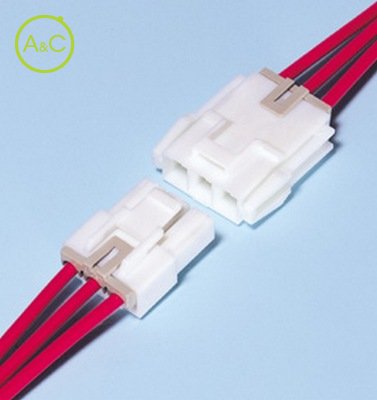

The VL connector is a 6.2mm (.244") pitch wire-to-wire connector designed for circuits requiring up to 20A (1 or 2-circuit with AWG #12 wire). Housing lances for contact retention Since the contact retention lances are part of the housing rather than protruding from the contact, they cannot be damaged by handling. They allow the contact to be easily inserted and securely locked into the housing. Secondary retainer The secondary retainer is optionally available. This retainer ensures that the contacts are fully seated and locked in the housing and prevents their accidental release. Installed after the contacts are inserted, it locks and secures the contact. Suited for circuits with high power requirements Since these contacts have large cross-sectional areas and high contact pressure, they can accommodate circuits requiring high power. Panel lock construction Our unique space-saving panel lock is designed to prevent tangling with wires or breaking in cold or dry weather. Standards UL Recognized E60389 CSA Certified LR20812 TUV R9351103 RoHS Compliant
