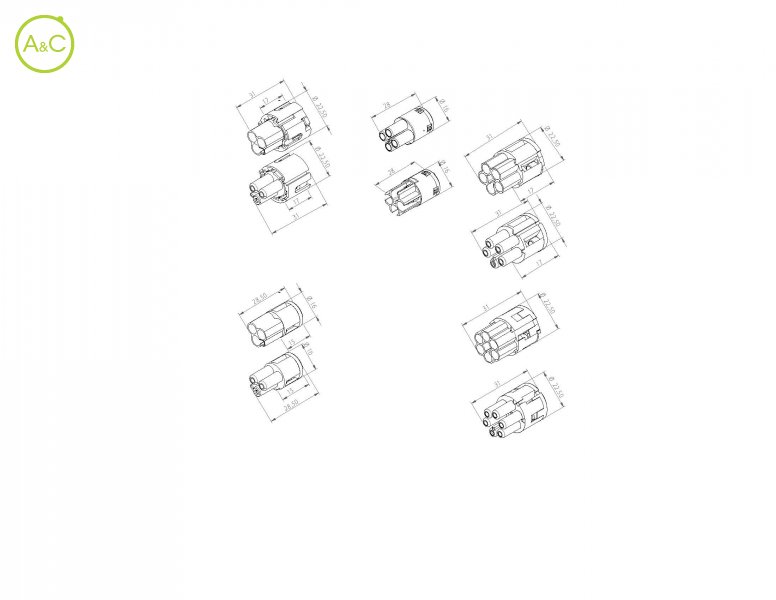

Insert plug connector

Download product sheet

Number Of Poles

  • 2
  • 3 black
  • 3 brown
  • 3 green
  • 5
  • 6
Article Number THB.023.A2B* THP.023.A2B* THB.023.A2C THP.023.A2C
Number Of Contacts 2 2 2 2
Upper Temperature +125 °C +125 °C +125 °C +125 °C
Lower Temperature -40 °C -40 °C -40 °C -40 °C
Rated Voltage 450 450 450 450
Pollution Degree 2 2 2 2
Rated Current 32 A 17.5 A 32 A 17.5 A
Remark* To be used only with TH388 - TH404 - TH405 - TH406 - TH408 - TH409. To be used only with TH388 - TH404 - TH405 - TH406 - TH408 - TH409. To be used only with TH388 - TH404 - TH405 - TH406 - TH408 - TH409. To be used only with TH388 - TH404 - TH405 - TH406 - TH408 - TH409.
Colour black - yellow black - yellow yellow yellow
Contact Terminal Contact screw terminals for cable section < 1,0 mm² Piercing clip terminals max 1,5 mm² Contact screw terminals for cable section < 1,0 mm² Piercing clip terminals max 1,5 mm²
Terminals Screw Piercing Screw Piercing
Cable Section max 4,0 mm² 0,5 - 1,5 mm² max 4,0 mm² 0,5 - 1,5 mm²
T Marking T125 °C T125 °C T125 °C T125 °C
Impulse Withstand Category II II II II
Impulse Withstand Voltage 4 kV 4 kV 4 kV 4 kV
Tracking Index PTI 175 PTI 175 PTI 175 PTI 175
Terminal Block Housing PA66 GF UL94 V0 GWT 960°C PA66 GF UL94 V0 GWT 960°C PA66 GF UL94 V0 GWT 960°C PA66 GF UL94 V0 GWT 960°C
Contact Screw Terminals Brass nickel plated OR Brass silver plated (THX.02X.XXX.AG) Brass nickel plated OR Brass silver plated (THX.02X.XXX.AG) Brass nickel plated OR Brass silver plated (THX.02X.XXX.AG) Brass nickel plated OR Brass silver plated (THX.02X.XXX.AG)
Screw M3 steel zinc plated M3 steel zinc plated M3 steel zinc brass plated M3 steel zinc plated
Standards EN61984-2001 EN61984-2001 EN61984-2001 EN61984-2001
Characteristics differ between variants of a connector
