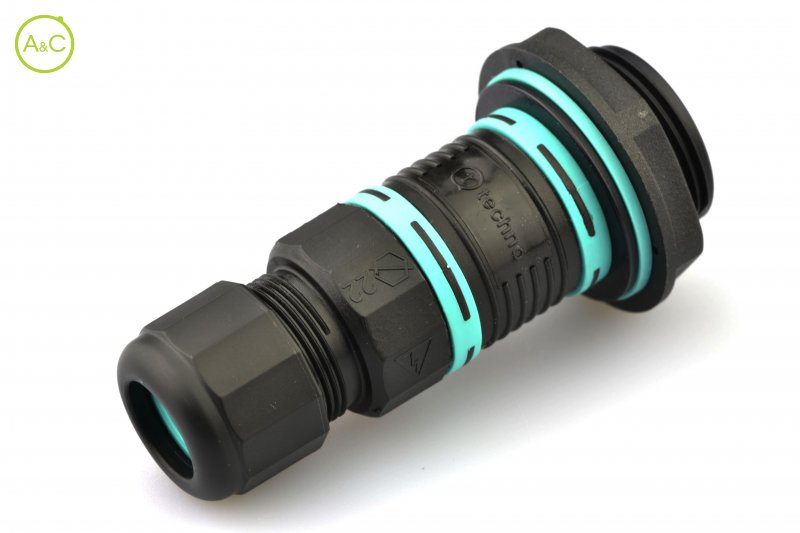

High protection in-line and junction, Anti condensation

  • Mini-connector, Type I
  • including fixing nut
Download product sheet

Number Of Poles

  • 4
Article Number THB.391.T4A THP.391.T4A
Number Of Contacts 4 4
Protection Degree IP68 3 bar IP68 3 bar
Upper Temperature +125 °C +125 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 450 450
Rated Current 17.5 A 17.5 A
Product Shape (type: I, L, T, Y) I I
Contact Terminal End barrier contact End barrier contact
Terminals Screw Screw
Cable Section max. 4,0 mm² max. 4,0 mm²
Nm 7,0 - 12,0 7,0 - 12,0
Cable Entries/exits 2 ways 2 ways
T Marking T85 °C T85 °C
Protection Degree Details 30 m / 2 h 30 m / 2 h
Tracking Index PTI 250 PTI 250
Cable Glands PA66 UL94 V2 PA66 UL94 V2
Terminal Block Housing PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035 PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Grommets TPE Green TPE Green
Co-moulded Seals TPE Green TPE Green
Contact Screw Terminals Brass nickel plated Brass nickel plated
Standard / Piercing Screws M3 steel zinc plated M3 steel zinc plated
Standards EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004 EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004
Characteristics differ between variants of a connector
