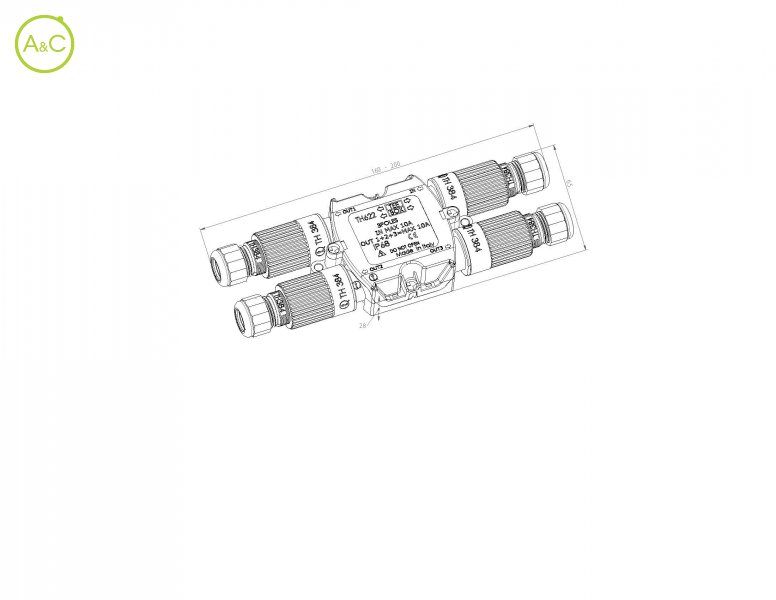

10 A current distrubutor
Do you have any questions about this product?
More info on this brand:
Techno
Techno
Number Of Poles
- 2
- 3
- 4
| Article Number | THH.622.C2A | THP.622.C2A | THF.622.C2A |
| Number Of Contacts | 2 | 2 | 2 |
| Protection Degree | IP54 | IP54 | IP54 |
| Upper Temperature | +125 °C | +125 °C | +125 °C |
| Lower Temperature | -40 °C | -40 °C | -40 °C |
| Rated Voltage | 400 | 400 | 400 |
| Pollution Degree | 2 | 2 | 2 |
| Rated Current | 10 A | 10 A | 10 A |
| Plug - Socket | 3 output: PLUG THB.384 1 input: SOCKET THB.384 | 3 output: PLUG THB.384 1 input: SOCKET THB.384 | 3 output: PLUG THB.384 1 input: SOCKET THB.384 |
| Contact Terminal | Contact screw terminals for cable section < 1,0 mm² | Piercing clip terminal max 1,5 mm² | For universal cylindric pin ∅ 2 mm (not supplied). |
| Terminals | Screw | Piercing | Crimp |
| Min-max Cable Diameter | 7,0 - 12,0 mm | 7,0 - 12,0 mm | 7,0 - 12,0 mm |
| Cable Entries/exits | 4 ways | 4 ways | 4 ways |
| T Marking | T85 °C | T85 °C | T85 °C |
| Impulse Withstand Category | II | II | II |
| Impulse Withstand Voltage | 4 kV | 4 kV | 4 kV |
| Tracking Index | PTI 175 | PTI 175 | PTI 175 |
| Distributor And Connector Housing | PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035 | PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035 | PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035 |
| Grommets | TPE/SEBS | TPE/SEBS | TPE/SEBS |
| Seals | TPE/SEBS | TPE/SEBS | TPE/SEBS |
| Fixing Screws Of Lid | M3 x 12,0 mm inox stainless steel self-locking screw | M3 x 12,0 mm inox stainless steel self-locking screw | M3 x 12,0 mm inox stainless steel self-locking screw |
| Standards | EN61984:2001 EN60529:1991+A1:2000 TEST REPORT EN60998-1:2004 HEATING RESISTANCE | EN61984:2001 EN60529:1991+A1:2000 TEST REPORT EN60998-1:2004 HEATING RESISTANCE | EN61984:2001 EN60529:1991+A1:2000 TEST REPORT EN60998-1:2004 HEATING RESISTANCE |
Characteristics differ between variants of a connector
