Connectors
Back to product overview

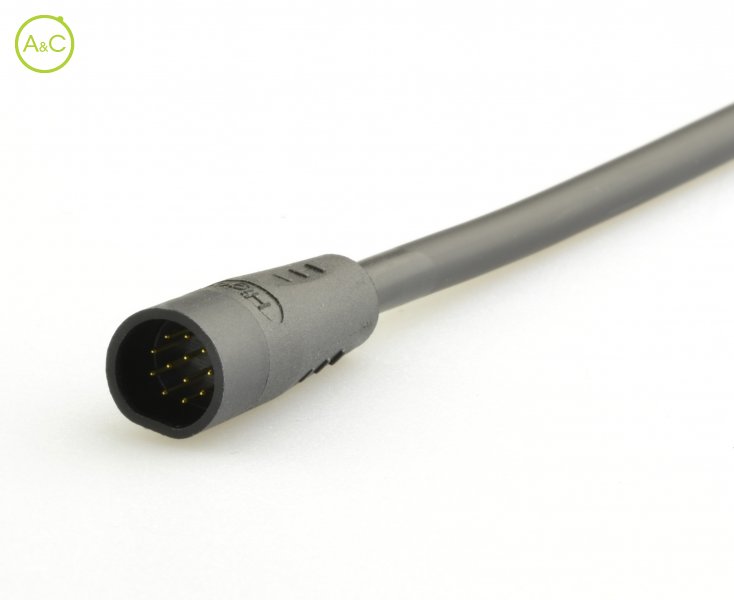

Main male plug connector
Do you have any questions about this product?
More info on this brand:
Higo
Higo
Number Of Poles
- 12
| Article Number | Z1211AG P 00 DW 1000 |
| Color | Black |
| Connector Diameter | 11 mm |
| Wire Section | 12 x 0,14 mm² |
| Cable Length | 1000 mm |
| Protection Degree | IP67 |
| Mating Cycles | 200 times |
| Upper Temperature | 80 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 48 V AC / 60 V DC |
| Max. Contact Resistance | ≤10 mΩ |
| Material Of Contact | Copper Alloy |
| Cable Diameter | 5 mm |
| Insulation Wire | PVC |
| Remark | Other cable length/type on request |
| Rated Current | 2 A |
| Max. Insulation Resistance | ≥20 MΩ |
| Contact Plating | Gold over Nickel |

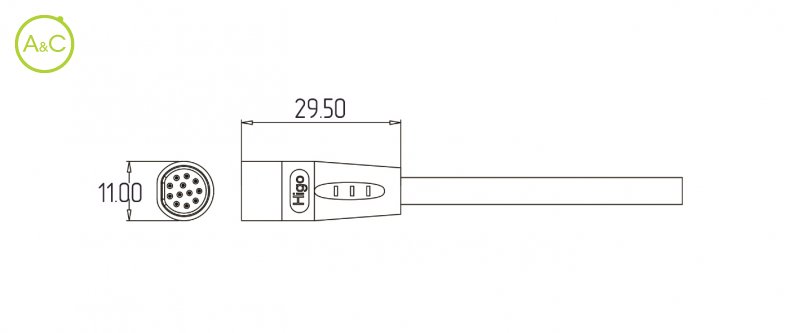

| Fitting Length | 53 mm |
| Material Jacket | PVC |
Characteristics differ between variants of a connector
