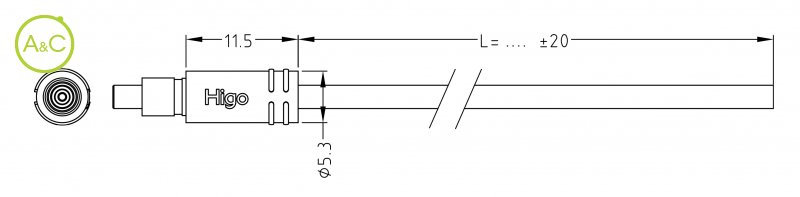

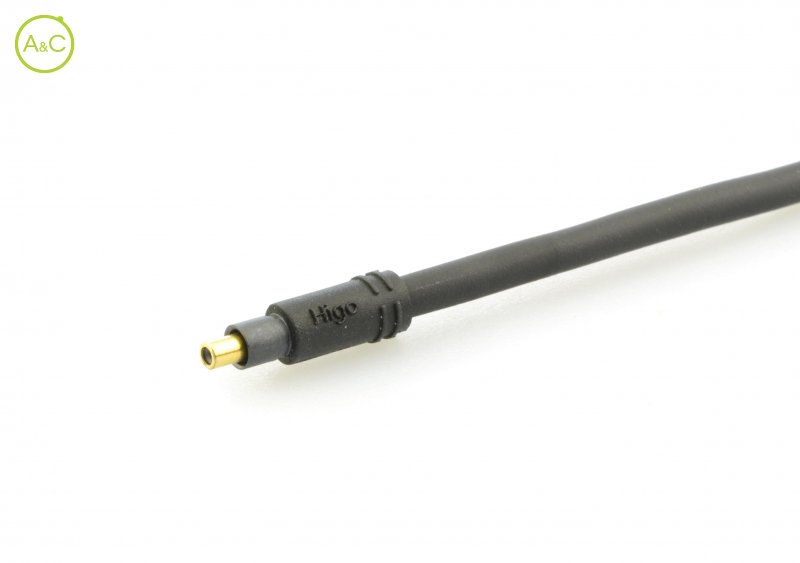

Micro B Female plug connector

Do you have any questions about this product?

More info on this brand:

Article Number	Z205BM P 00 DS 1000	Z205BM P 00 AW 1000	Z205BM P 00 S4 1000
Color	Black	Black	Black
Connector Diameter	5.3 mm	5.3 mm	5.3 mm
Wire Section	2 x 0,14 mm²	2 x 0,14 mm²	2 x 0,34 mm²
Cable Length	1000 mm	1000 mm	1000 mm
Protection Degree	IP67	IP67	IP67
Mating Cycles	200 times	200 times	200 times
Upper Temperature	80 °C	80 °C	80 °C
Lower Temperature	-25 °C	-25 °C	-25 °C
Rated Voltage	48 V AC / 60 V DC	48 V AC / 60 V DC	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ	≤10 mΩ	≤10 mΩ
Material Of Contact	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Cable Diameter	2.4 mm	2.4 mm	3.9 mm
Insulation Wire	FEP	FEP	FEP
Remark	Other cable length/type on request	Other cable length/type on request	Other cable length/type on request
Rated Current	2 A	2 A	2 A
Max. Insulation Resistance	≥20 MΩ	≥20 MΩ	≥20 MΩ
Contact Plating	Gold over Nickel	Gold over Nickel	Gold over Nickel
Fitting Length	29.5 mm	29.5 mm	29.5 mm
Material Jacket	PVC	TPU	TPU

Characteristics differ between variants of a connector
