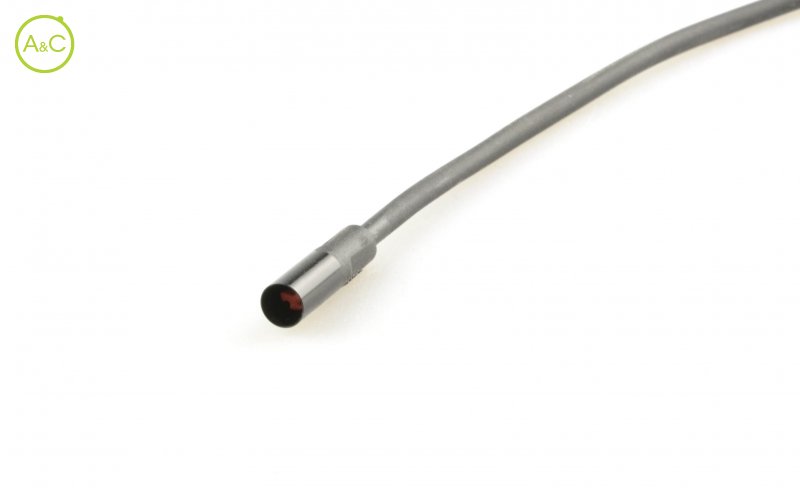

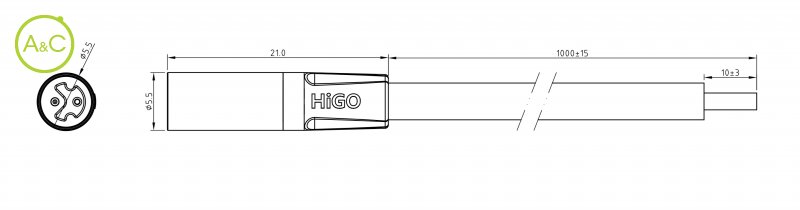

Micro M male cable connector

Number Of Poles

  • 2
Article Number Z205MG P 00 H1 1000
Color Red
Connector Diameter 5.5 mm
Wire Section 2 x 0,13 mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 50 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Phosphor Bronze
Insulation Wire PVC
Remark Other cable length/type on request
Rated Current 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 30 mm
Material Jacket TPU
Characteristics differ between variants of a connector
