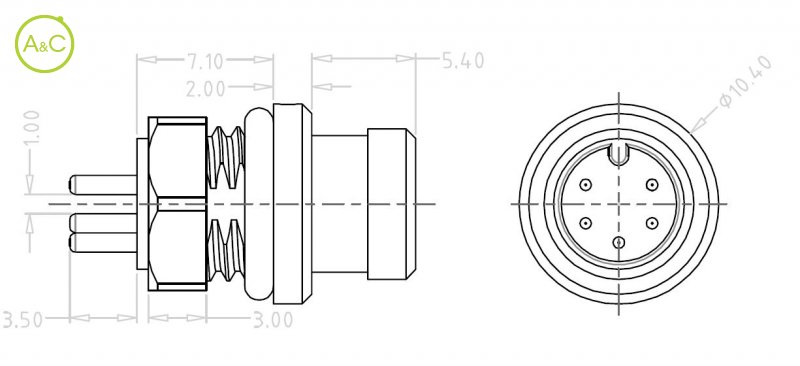

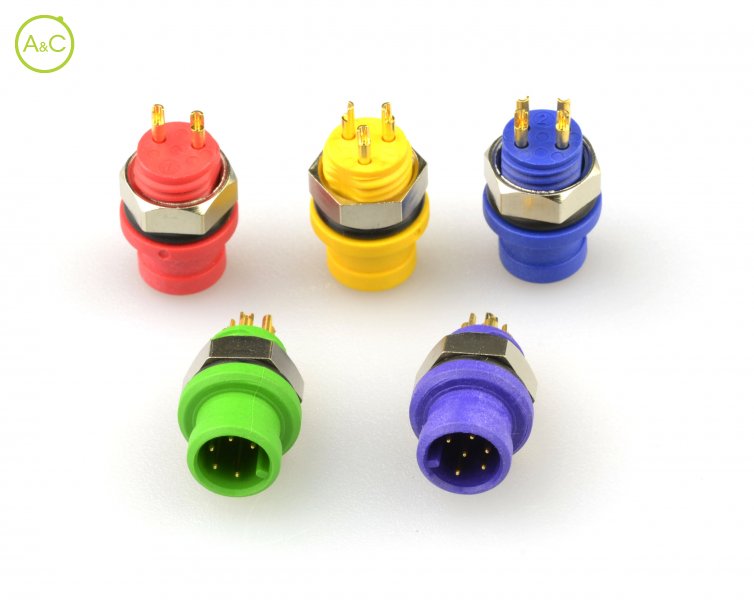

Mini B Male panel mount connector

Solder cup contacts

Z209BGC02000000

Z209BGC02000000

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet Download step file

More info on this brand:

Number Of Poles

2
3
4
5
6

Article Number	Z209BG C 02 00 0000
Color	Red
Connector Diameter	9 mm
Wire Section	0,14 / 0,2 mm²
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	42 mm
Contact Type	Solder cup contacts

Article Number	Z309BG C 02 00 0000
Color	Yellow
Connector Diameter	9 mm
Wire Section	0,14 / 0,2 mm²
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	42 mm
Contact Type	Solder cup contacts

Article Number	Z409BG C 02 00 0000
Color	Blue
Connector Diameter	9 mm
Wire Section	0,14 / 0,2 mm²
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	42 mm
Contact Type	Solder cup contacts

Article Number	Z509BG C 02 00 0000
Color	Green
Connector Diameter	9 mm
Wire Section	0,14 / 0,2 mm²
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	42 mm
Contact Type	Solder cup contacts

Article Number	Z609BG C 02 00 0000
Color	Purple
Connector Diameter	9 mm
Wire Section	0,14 / 0,2 mm²
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	42 mm
Contact Type	Solder cup contacts

Characteristics differ between variants of a connector
