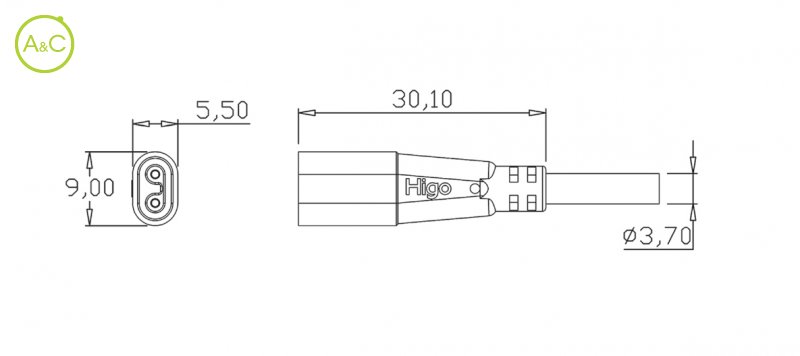

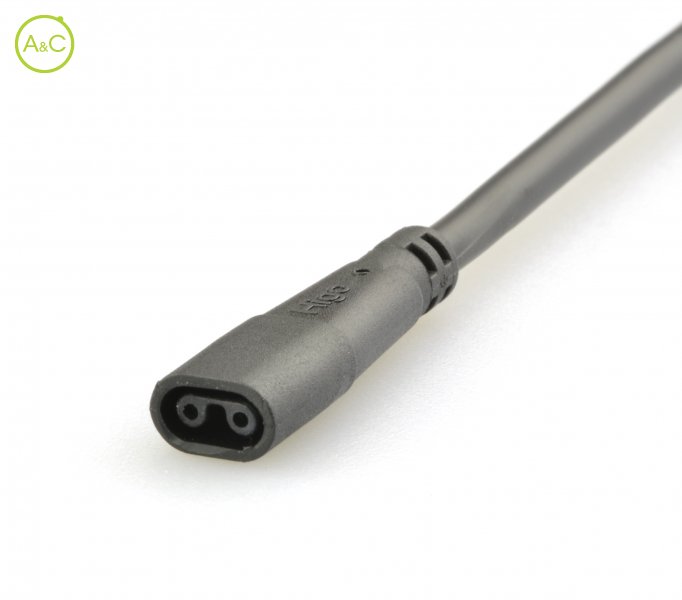

Mini E female cable connector

Download product sheet

Number Of Poles

  • 2
Article Number Z209EM P 00 D7 1000
Color Black
Connector Diameter 8 mm
Wire Section 0.2 mm²
Cable Length 1000 mm
Protection Degree IP66
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Phosphor bronze
Insulation Wire PVC
Remark Other cable length/type on request
Rated Current 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Material Jacket PVC
Characteristics differ between variants of a connector
