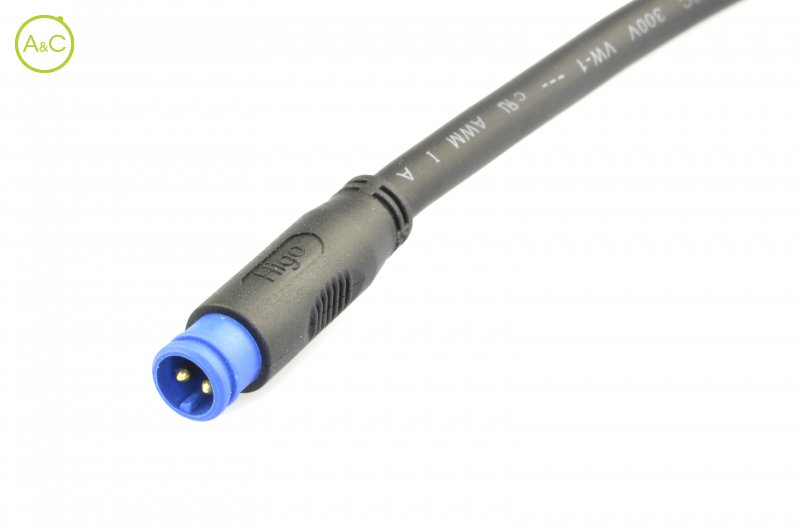

Male cable connector

Do you have any questions about this product?

More info on this brand:

Article Number	Z409EGP 00 FE 1000	Z409EGP 00 D5 1000
Color	Blue	Bleu

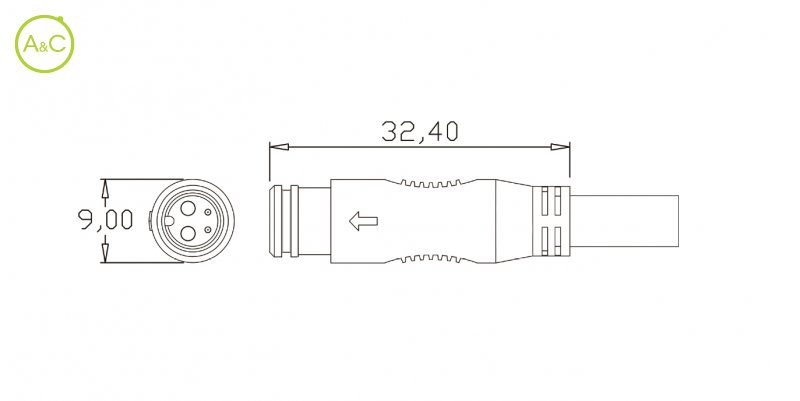

Connector Diameter	9 mm	9 mm
Wire Section	2 x 1,0 + 2 x 0,14 mm²	2 x 1,0 + 2 x 0,14 mm²
Cable Length	1000 mm	1000 mm
Protection Degree	IPX7	IPX7
Mating Cycles	200 times	200 times
Upper Temperature	80 °C	80 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	48 V AC / 60 V DC	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ	≤10 mΩ
Material Of Contact	Copper Alloy	Copper Alloy
Cable Diameter	5.5 mm	5.5 mm
Insulation Wire	FEP	FEP
Remark	Other cable length/type on request	Other cable length/type on request
Rated Current	10 / 2 A	10 / 2 A
Max. Insulation Resistance	≥20 MΩ	≥20 MΩ
Contact Plating	Gold over Nickel	Gold over Nickel
Fitting Length	61 mm	61 mm
Material Jacket	PVC	TPU

Characteristics differ between variants of a connector
