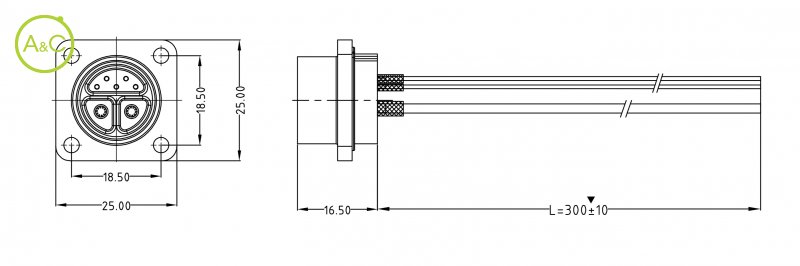

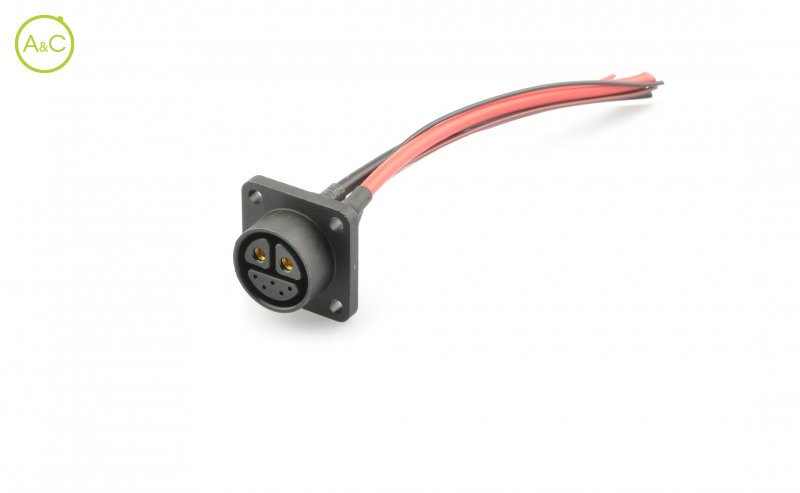

Female panel mount connector

Number Of Poles

  • 7 (2+5)
Article Number Z718AM C 03 GH 0300
Color Black
Connector Diameter 18 mm
Wire Section 2 x 2,5 + 5 x 0,2 mm²
Cable Length 300 mm
Protection Degree IP67
Mating Cycles 3000 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Brass
Insulation Wire Teflon
Remark Other cable length/type on request
Rated Current 25 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold
Characteristics differ between variants of a connector
