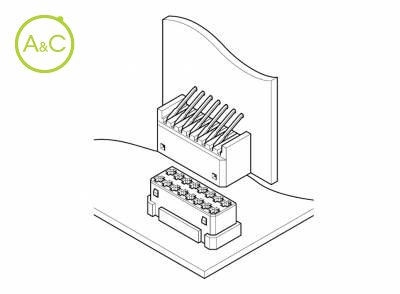

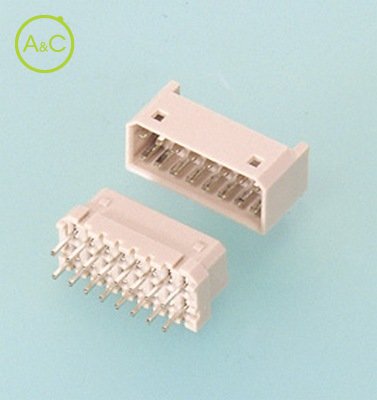

This 1.25mm (.049") pitch dual-in-line connector allows high-density packaging. Double-sided, high-pressure contacts and a housing locking feature provide reliable connections. Compact, high-density design This small connector has a 1.25mm (.049") pitch dual-in-line construction at both the mating and printed circuit board sides. It has a mounting height of only 7.0mm (.278") and a thickness of 4.6mm (.181"). Positive housing lock provides a highly reliable connection The high-pressure, double-sided, fork type contacts and a housing lock feature ensure continuity even when the connector is subjected to severe vibration or shock. Polarized shrouded header The polarized shrouded header prevents misinsertion or distortion of the receptacle housing during mating. The rigid mating mating between the plug and receptacle guarantees high reliability during vibration or shock. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
