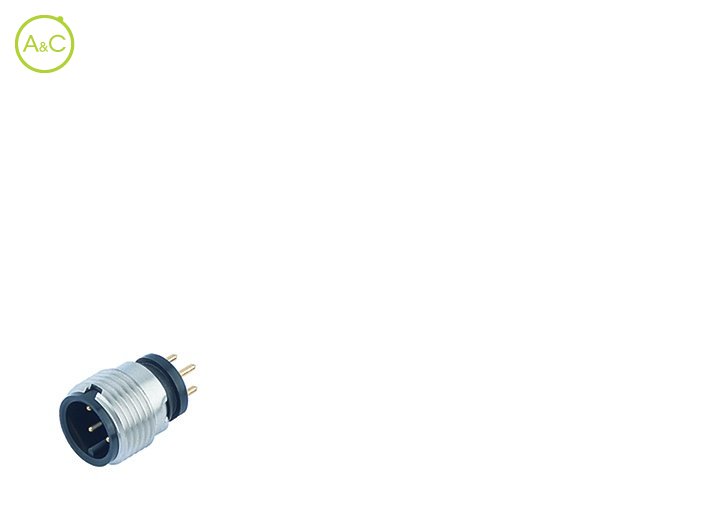

Male panel mount connector

  • With fixing thread

Number Of Poles

  • 4
Article Number 09 0431 212 04

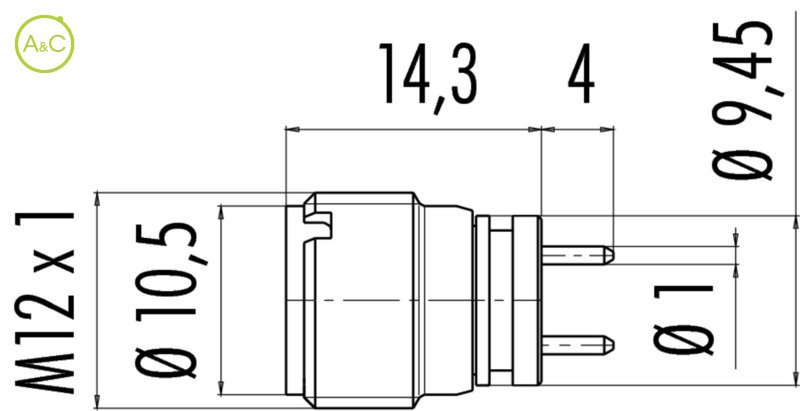

Connector Diameter 10.5 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-A)
Termination Dip solder
Wire Section 0.25 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group III
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing PA
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
