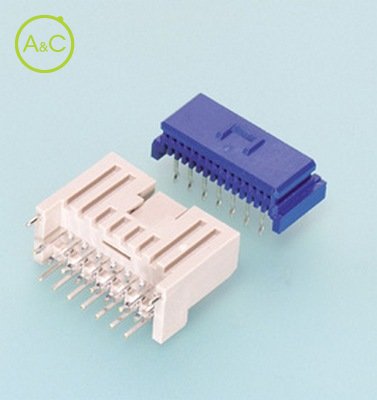

Receptacle Secure lock type

JET CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	09R-JET-P
Number Of Contacts	9
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.25mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.25 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	15R-JET-P
Number Of Contacts	15
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.25mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.25 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Eigenschappen verschillen tussen varianten en subvarianten

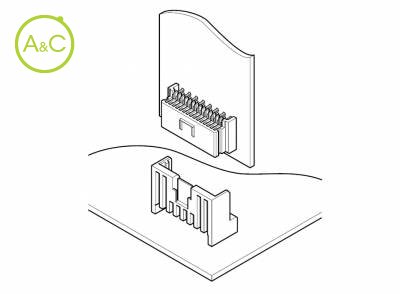

Self-supporting style board-to-board connectors. Both secure lock and friction lock type receptacles are available. The connector halves can be easily mated, yet have a high retention force because of the housing lock mechanism. Good connection is assured even after severe shock & vibration Because of their construction, even severe shocks and long periods of vibration will not cause circuit interruption. Both secure lock and friction lock connectors are available. Correct and secure mating The connector halves can be easily mated, yet have a high retention force because of the housing lock mechanism. RoHS Compliant
