Housing for SZN Connector

SZN CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	2P-SZN
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Board-in Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	3P-SZN
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Board-in Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	4P-SZN
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Board-in Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	5P-SZN
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Board-in Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	6P-SZN
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Board-in Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	7P-SZN
Number Of Contacts	7
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Board-in Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	8P-SZN
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Board-in Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	9P-SZN
Number Of Contacts	9
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Board-in Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	10P-SZN
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Board-in Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	11P-SZN
Number Of Contacts	11
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Board-in Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	12P-SZN
Number Of Contacts	12
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Board-in Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	13P-SZN
Number Of Contacts	13
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Board-in Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Eigenschappen verschillen tussen varianten en subvarianten

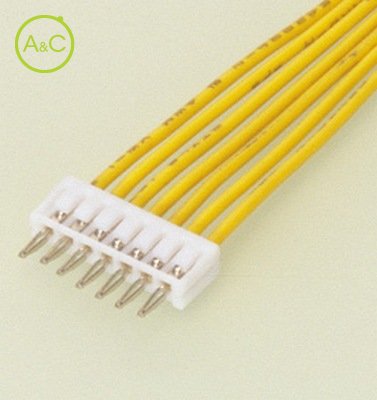

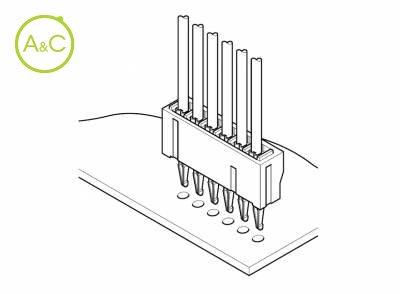

This low-profile, board-in connector, with a mounting height of only 4.25mm (.167") and a thickness of 2.4mm (.094"), is soldered directly onto printed circuit boards. The solder tail of the contact is resilient for easy assembly. The housing lances facilitate insertion of contacts. Slim, low-profile design The SZN connector features a mounting height of just 4.25mm (.167") and a thickness of 2.4mm (.094"). Housing lances The lances on the resilient housing ensure easy insertion and secure locking of the contact into the housing. Easy mounting onto printed circuit boards The solder tail of the contact is resilient so as to ensure easy assembly and provide a secure lock of the connector in the printed circuit board prior to soldering. Rugged contact construction The spring members of the resilient solder tail are joined together at the tip to prevent opening or deformation and to ensure easy handling. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
