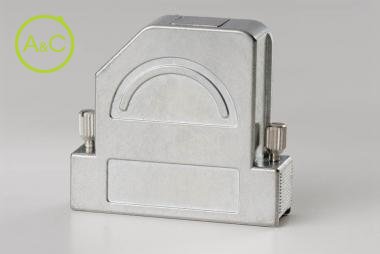

Quick mount Die cast hoods with knurled screw locking cable output 180° and 135°
Meer info over dit merk:
Provertha
Provertha
Number Of Poles
- 9
- 15
| Article Number | 147090DC24001 | 147091DC24001 |
| Number Of Contacts | 9 | 9 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| Thread | UNC 4-40 | M3 |
| Material | zn alloy | zn alloy |
| Locking Style | knurled screw | knurled screw |
| Cable Exit | Straigt 180° Angled: 1x 45° | Straigt 180° Angled: 1x 45° |
| Cable Fixing | Cable clamp extern (al) crimping flange | Cable clamp extern (al) crimping flange |
| Cable Outputs | 1 | 1 |
| Cable Diameter External Cable Clamp | 4-14 | 4-14 |
| Cable Diameter Crimping Flange | 2,7-8,7 | 2,7-8,7 |
| Material Knurled Screws, Cover Screws And Cable Clamp Screws | ST tin plated | ST tin plated |
| Compact Thickness For 9-25 Poles For Installation In Sub-devices With 3 Te | 15 | 15 |
Eigenschappen verschillen tussen varianten en subvarianten
