Number Of Poles
-
17
-
21
-
23
-
25
-
27
-
31
-
33
-
39
-
45
-
51
| Article Number |
17FXZT-SM1-GAN-TF |
| Number Of Contacts |
17 |
| Upper Temperature |
+85 °C |
| Lower Temperature |
-25 °C |
| General Description |
0.3mm Pitch ZIF Connector for FPC |
| Connection Type |
Printed Circuit Board Connectors |
| Pitch / Style |
0.30 mm |
| Rated Current (ac/dc) |
0.2 A |
| Rated Voltage (ac/dc) |
50 V |
| Pcb Mount Style |
Surface Mount Technology (SMT) |
| Article Number |
21FXZT-SM1-GAN-TF |
| Number Of Contacts |
21 |
| Upper Temperature |
+85 °C |
| Lower Temperature |
-25 °C |
| General Description |
0.3mm Pitch ZIF Connector for FPC |
| Connection Type |
Printed Circuit Board Connectors |
| Pitch / Style |
0.30 mm |
| Rated Current (ac/dc) |
0.2 A |
| Rated Voltage (ac/dc) |
50 V |
| Pcb Mount Style |
Surface Mount Technology (SMT) |
| Article Number |
23FXZT-SM1-GAN-TF |
| Number Of Contacts |
23 |
| Upper Temperature |
+85 °C |
| Lower Temperature |
-25 °C |
| General Description |
0.3mm Pitch ZIF Connector for FPC |
| Connection Type |
Printed Circuit Board Connectors |
| Pitch / Style |
0.30 mm |
| Rated Current (ac/dc) |
0.2 A |
| Rated Voltage (ac/dc) |
50 V |
| Pcb Mount Style |
Surface Mount Technology (SMT) |
| Article Number |
25FXZT-SM1-GAN-TF |
| Number Of Contacts |
25 |
| Upper Temperature |
+85 °C |
| Lower Temperature |
-25 °C |
| General Description |
0.3mm Pitch ZIF Connector for FPC |
| Connection Type |
Printed Circuit Board Connectors |
| Pitch / Style |
0.30 mm |
| Rated Current (ac/dc) |
0.2 A |
| Rated Voltage (ac/dc) |
50 V |
| Pcb Mount Style |
Surface Mount Technology (SMT) |
| Article Number |
27FXZT-SM1-GAN-TF |
| Number Of Contacts |
27 |
| Upper Temperature |
+85 °C |
| Lower Temperature |
-25 °C |
| General Description |
0.3mm Pitch ZIF Connector for FPC |
| Connection Type |
Printed Circuit Board Connectors |
| Pitch / Style |
0.30 mm |
| Rated Current (ac/dc) |
0.2 A |
| Rated Voltage (ac/dc) |
50 V |
| Pcb Mount Style |
Surface Mount Technology (SMT) |
| Article Number |
31FXZT-SM1-GAN-TF |
| Number Of Contacts |
31 |
| Upper Temperature |
+85 °C |
| Lower Temperature |
-25 °C |
| General Description |
0.3mm Pitch ZIF Connector for FPC |
| Connection Type |
Printed Circuit Board Connectors |
| Pitch / Style |
0.30 mm |
| Rated Current (ac/dc) |
0.2 A |
| Rated Voltage (ac/dc) |
50 V |
| Pcb Mount Style |
Surface Mount Technology (SMT) |
| Article Number |
33FXZT-SM1-GAN-TF |
| Number Of Contacts |
33 |
| Upper Temperature |
+85 °C |
| Lower Temperature |
-25 °C |
| General Description |
0.3mm Pitch ZIF Connector for FPC |
| Connection Type |
Printed Circuit Board Connectors |
| Pitch / Style |
0.30 mm |
| Rated Current (ac/dc) |
0.2 A |
| Rated Voltage (ac/dc) |
50 V |
| Pcb Mount Style |
Surface Mount Technology (SMT) |
| Article Number |
39FXZT-SM1-GAN-TF |
| Number Of Contacts |
39 |
| Upper Temperature |
+85 °C |
| Lower Temperature |
-25 °C |
| General Description |
0.3mm Pitch ZIF Connector for FPC |
| Connection Type |
Printed Circuit Board Connectors |
| Pitch / Style |
0.30 mm |
| Rated Current (ac/dc) |
0.2 A |
| Rated Voltage (ac/dc) |
50 V |
| Pcb Mount Style |
Surface Mount Technology (SMT) |
| Article Number |
45FXZT-SM1-GAN-TF |
| Number Of Contacts |
45 |
| Upper Temperature |
+85 °C |
| Lower Temperature |
-25 °C |
| General Description |
0.3mm Pitch ZIF Connector for FPC |
| Connection Type |
Printed Circuit Board Connectors |
| Pitch / Style |
0.30 mm |
| Rated Current (ac/dc) |
0.2 A |
| Rated Voltage (ac/dc) |
50 V |
| Pcb Mount Style |
Surface Mount Technology (SMT) |
| Article Number |
51FXZT-SM1-GAN-TF |
| Number Of Contacts |
51 |
| Upper Temperature |
+85 °C |
| Lower Temperature |
-25 °C |
| General Description |
0.3mm Pitch ZIF Connector for FPC |
| Connection Type |
Printed Circuit Board Connectors |
| Pitch / Style |
0.30 mm |
| Rated Current (ac/dc) |
0.2 A |
| Rated Voltage (ac/dc) |
50 V |
| Pcb Mount Style |
Surface Mount Technology (SMT) |
Eigenschappen verschillen tussen varianten en subvarianten

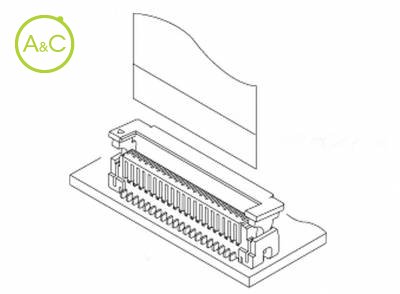

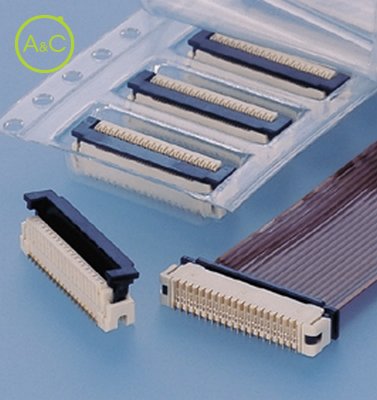

Vertical 0.3mm (.012") pitch ZIF type connector. This connector was mainly developed to connect FPC and subminiature digital products such as DVC, DSC, PDAs and so on.
Vertical ZIF type FPC connector
Space saving
0.3mm (.012") pitch ZIF type connector for FPC realizes space saving for mounting area.
Adoption of slider structure
In general flip-lock structure in side entry type, lock might be released during routing of FPC, thus slider structure suitable for vertical ZIF type connector has been adopted.
Standards
UL Recognized E60389
RoHS Compliant
JST
