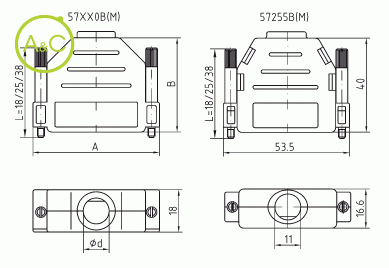

Pin hood with side screw locks

Pin hood packed as set

57 09 0B 25 T 001

57 09 0B 25 T 001

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Number Of Poles

9
15
25

Article Number	57 09 0B 25 T 001	57 09 0M 25 T 001
Number Of Contacts	9	9
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper
Thread	UNC 4-40	UNC 4-40
Remark	For a fastening screw with M3 thread put in the article number M3 before the "T"	For a fastening screw with M3 thread put in the article number M3 before the "T"
Material	ABS UL 94-V0	ABS UL 94-V0
Extra Information	Reduced assembly time by clip- or pin connection between both parts of the hood Suitable for flat-strip connectors	Reduced assembly time by clip- or pin connection between both parts of the hood Suitable for flat-strip connectors

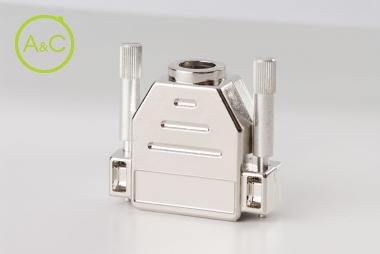

Hood Version	black with 25 mm slotted screw	Metallized with 25 mm thumb screw + slot
Locking Style	knurled screw	knurled screw
Cable Exit	Straight	Straight
Cable Fixing	Clamp intern (al)	Clamp intern (al)
Cable Diameter Internal Cable Clamp	4-10	4-10
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated

Article Number	57 15 0B 25 T 001	57 15 0M 25 T 001
Number Of Contacts	15	15
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper
Thread	UNC 4-40	UNC 4-40
Remark	For a fastening screw with M3 thread put in the article number M3 before the "T"	For a fastening screw with M3 thread put in the article number M3 before the "T"
Material	ABS UL 94-V0	ABS UL 94-V0
Extra Information	Reduced assembly time by clip- or pin connection between both parts of the hood Suitable for flat-strip connectors	Reduced assembly time by clip- or pin connection between both parts of the hood Suitable for flat-strip connectors
Hood Version	black with 25 mm slotted screw	Metallized with 25 mm thumb screw + slot
Locking Style	knurled screw	knurled screw
Cable Exit	Straight	Straight
Cable Fixing	Clamp intern (al)	Clamp intern (al)
Cable Diameter Internal Cable Clamp	4-12	4-12
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated

Article Number	57 25 0B 25 T 001	57 25 0M 25 T 001
Number Of Contacts	25	25
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper
Thread	UNC 4-40	UNC 4-40
Remark	For a fastening screw with M3 thread put in the article number M3 before the "T"	For a fastening screw with M3 thread put in the article number M3 before the "T"
Material	ABS UL 94-V0	ABS UL 94-V0
Extra Information	Reduced assembly time by clip- or pin connection between both parts of the hood Suitable for flat-strip connectors	Reduced assembly time by clip- or pin connection between both parts of the hood Suitable for flat-strip connectors
Hood Version	black with 25 mm slotted screw	Metallized with 25 mm thumb screw + slot
Locking Style	knurled screw	knurled screw
Cable Exit	Straight	Straight
Cable Fixing	Clamp intern (al)	Clamp intern (al)
Cable Diameter Internal Cable Clamp	4-12	4-12
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated

Eigenschappen verschillen tussen varianten en subvarianten
