Provertha
Number Of Poles
- 9
- 15
- 25
- 37

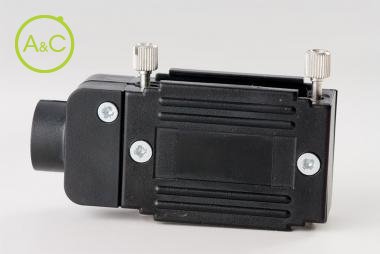

| Article Number | 77 09 5B | 77 09 5M |
| Number Of Contacts | 9 | 9 |
| Upper Temperature | +90 °C | +90 °C |
| Lower Temperature | -20 °C | -20 °C |
| Plating | Nickel plated copper | Nickel plated copper |
| Thread | UNC 4-40 | UNC 4-40 |
| Material | ABS UL 94-V0 | ABS UL 94-V0 |

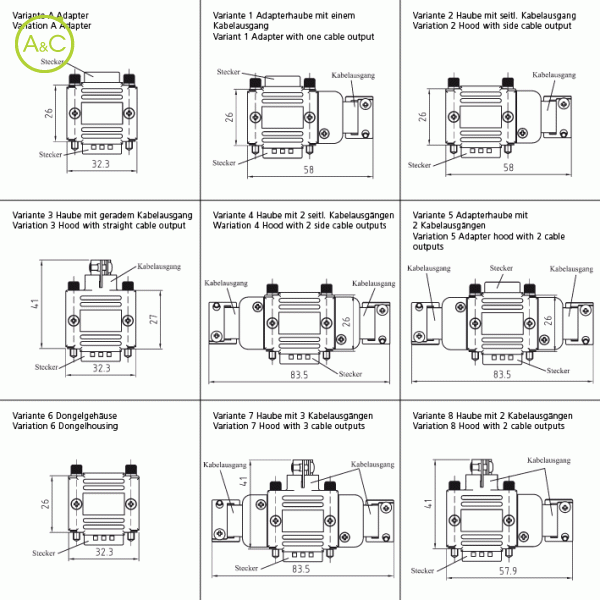

| Extra Information | You can select up to 3 cable outputs, adapter hood, distributor for up to 4 cables, dongle hood, transmission distributor, etc. Small height of 16 mm Big cable clamping area max. 10 mm | You can select up to 3 cable outputs, adapter hood, distributor for up to 4 cables, dongle hood, transmission distributor, etc. Small height of 16 mm Big cable clamping area max. 10 mm |
| Hood Version | black | Metallized |
| Locking Style | knurled screw | knurled screw |
| Cable Exit | Straight Angled: 2 x 90° | Straight Angled: 2 x 90° |
| Cable Fixing | Clamp intern (al) | Clamp intern (al) |
| Cable Diameter Internal Cable Clamp | 4-10 | 4-10 |
| Material/surface Cover Screws | ST Zinc plated | ST Zinc plated |
Eigenschappen verschillen tussen varianten en subvarianten
