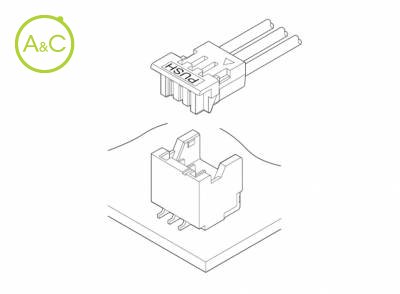

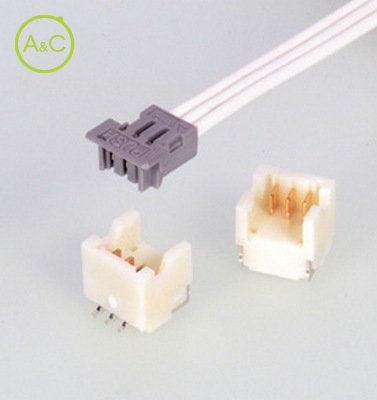

This 1.25mm pitch wire-to-board connector system offers excellent operational advantages over other connectors of a similar size, due to its top entry style and low profile characteristics. Also thanks to its unique rib configuration mating and un-mating performance is very stable. With its low profile and ease of application this connector is ideal for battery connections in telecommunication equipment. Miniaturization Developed for mobile phone battery connection. The mounting height of 6.1mm (.240"), but can be reduced to 4.4mm (.173") depending on the designat low profile header side. Distortion resistant construction Because of the unique rib structure of the housing, the connector is resistant to distortion when extracting. Applicable to surface mounting technology The header has a sufficient area for suction for the use of automatic surface mounting system. Standards UL Recognized E60389 TUV J50014042 RoHS Compliant
