Shrouded Header THT

CS/CSR CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	B03B-CSRK
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B05B-CSRK
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B07B-CSRK
Number Of Contacts	7
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B09B-CSRK
Number Of Contacts	9
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B11B-CSRK
Number Of Contacts	11
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B13B-CSRK
Number Of Contacts	13
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B15B-CSRK
Number Of Contacts	15
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B17B-CSRK
Number Of Contacts	17
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B19B-CSRK
Number Of Contacts	19
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B21B-CSRK
Number Of Contacts	21
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B23B-CSRK
Number Of Contacts	23
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B25B-CSRK
Number Of Contacts	25
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B27B-CSRK
Number Of Contacts	27
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B29B-CSRK
Number Of Contacts	29
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B31B-CSRK
Number Of Contacts	31
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Eigenschappen verschillen tussen varianten en subvarianten

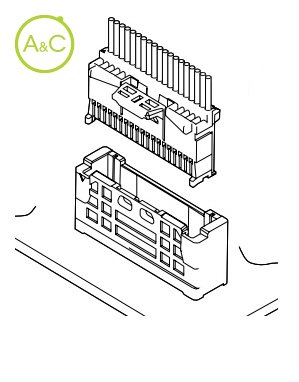

This is a 1.0mm pitch insulation displacement connector with the secure locking structure to prevent coming off the connector and incomplete mating. 1.8A in rated current was realized by using AWG#27. Secure locking structure Realization of multi-circuits by low insertion force Countermeasure for unexpected prying insertion EC directive 2002/95/EC (the RoHS Directive) - Compliant
