JST
Number Of Poles
- 16
| Article Number | B16B-MIOS |
| Number Of Contacts | 16 |
| Upper Temperature | +105 °C |
| Lower Temperature | -40 °C |
| General Description | 2.50mm Pitch Disconnectable Crimp Style |
| Connection Type | Automotive |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 5 C, DC (0.5mm2, Single Circuit) A |
| Rated Voltage (ac/dc) | 12 V |
| Pcb Mount Style | Through-hole Technology (THT) |
Eigenschappen verschillen tussen varianten en subvarianten

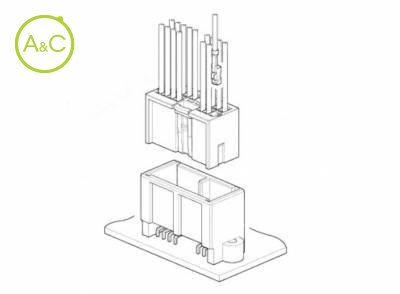

Low profile type connector for interface of automotive electrical equipment.
Low profile
Using the short length female terminal, low profile is realized.
Solder crack prevention configuration
Pin configuration of PC board side connector is designed for solder crack prevention.
Reliability
Various ideas, such as prevention mechanism for excessive deformed female terminal, detection for incomplete inserted terminal by side retainer, improved terminal retention force, and the anti-misinsertion structure, are included in this connector.
RoHS Compliant
